Powermatic PM2014 14 x 20 Benchtop Woodworking Lathe

Powermatic PM2014 14 x 20 Benchtop Woodworking Lathe

$3,295.00 CAD Funds

Choose an option below:

Questions about this Product? We are here to help! Call us toll-free today: 1 (833) 399-5395

    Questions? Call us Toll-Free 1-(833) 399-5395

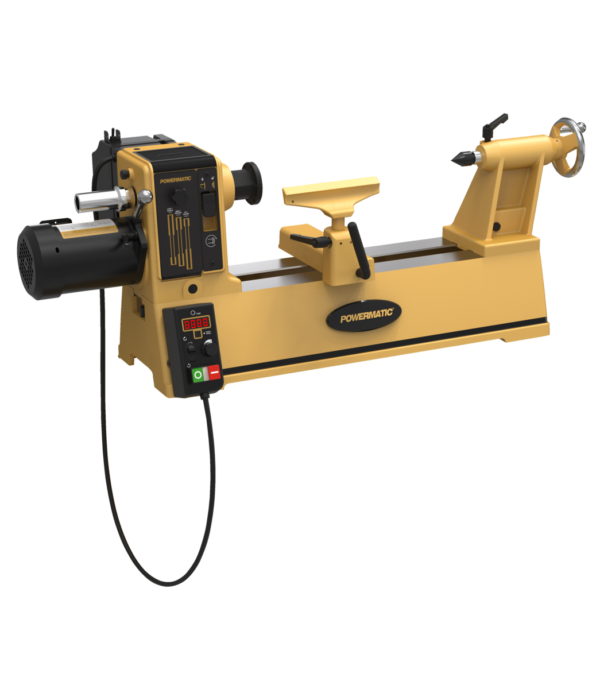

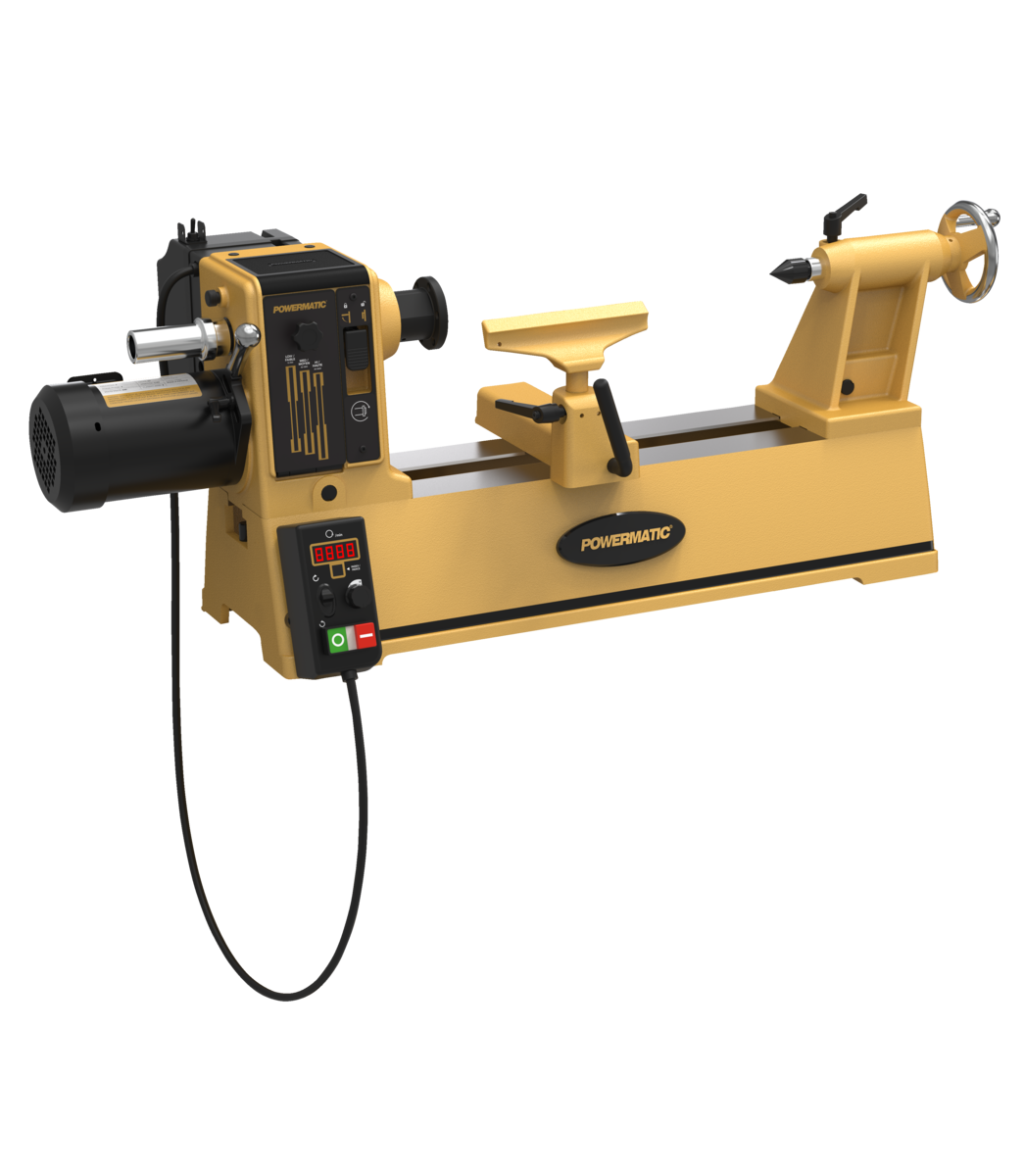

    The Powermatic PM2014 is a 14" x 20" benchtop woodworking lathe designed for versatility and precision. It features a 1HP motor, variable speeds ranging from 15 to 3600 RPM, and a sliding headstock for outboard turning. The lathe offers a 24-position indexing system, ergonomic hand wheels, and a tool caddy for convenience. It's constructed from cast iron for durability and includes an 8-inch tool rest. This lathe is ideal for both beginners and professionals.

    Warranty: 1 YearUPC: 731325806380 SKU: PM9-1792014 Categories: , , Tag:

    Specifications

    Stock Number 1792014
    Bed Construction Cast Iron
    Distance Between Centers (In.) 19-1/4
    Gross Weight (Lbs) 205.7
    Headstock Movement Sliding
    Motor Amps 3
    Motor (HP) 1
    Motor Power (HP) 1
    Motor Voltage (V.) 230
    Net Weight (Lbs.) 183
    Number of Indexing Positions 24
    Outboard Turning Yes
    Overall Dimensions (L x W x H) (In.) 52 x 24 x 18
    Prewired Voltage (V.) 115
    Quill Taper MT2
    Shipping Dimensions (L x W x H) (In.) 33.25 x 18.9 x 22.83
    Size 20 x 14
    Speed Range (RPM) 15-3600
    Spindle Taper MT2
    Spindle Thread (In./TPI) 1-1/4″/8 TPI
    Style (Type) Benchtop
    Swing Over Bed (In.) 14-1/4
    Swing Over Tool Rest Base (In.) 10-3/4
    Weight (Lbs.) 183
    • Acme threads on tail stock for smoother operation and longevity
    • Attached tool caddie allows convenient access to centers, wrenches, and accessories
    • Banjo features a non-marring, pinch style clamp for solid tool rest placement
    • Chrome-trimmed hand wheels are ergonomic for a comfortable feel
    • Includes 8 inch tool rest with 1 inch post
    • Lathe easily disassembles for better portability
    • Main power disconnect on rear of headstock lock out for safety

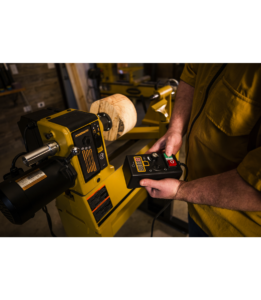

    • 24 positive locking indexing position, displayed on the moveable magnetic control box, simplifies the indexing process
    • Variable speeds from as low 15RPMs to as high as 3600RPMs
    • With constant monitoring of the motor the inverter keeps torque consistent.
