Powermatic PM1000, 1-3/4HP 1PH Table Saw, w/ 52" Accu-Fence System

Powermatic PM1000, 1-3/4HP 1PH Table Saw, w/ 52″ Accu-Fence System

$4,195.00 CAD Funds

Choose an option below:

Questions about this Product? We are here to help! Call us toll-free today: 1 (833) 399-5395

    Questions? Call us Toll-Free 1-(833) 399-5395

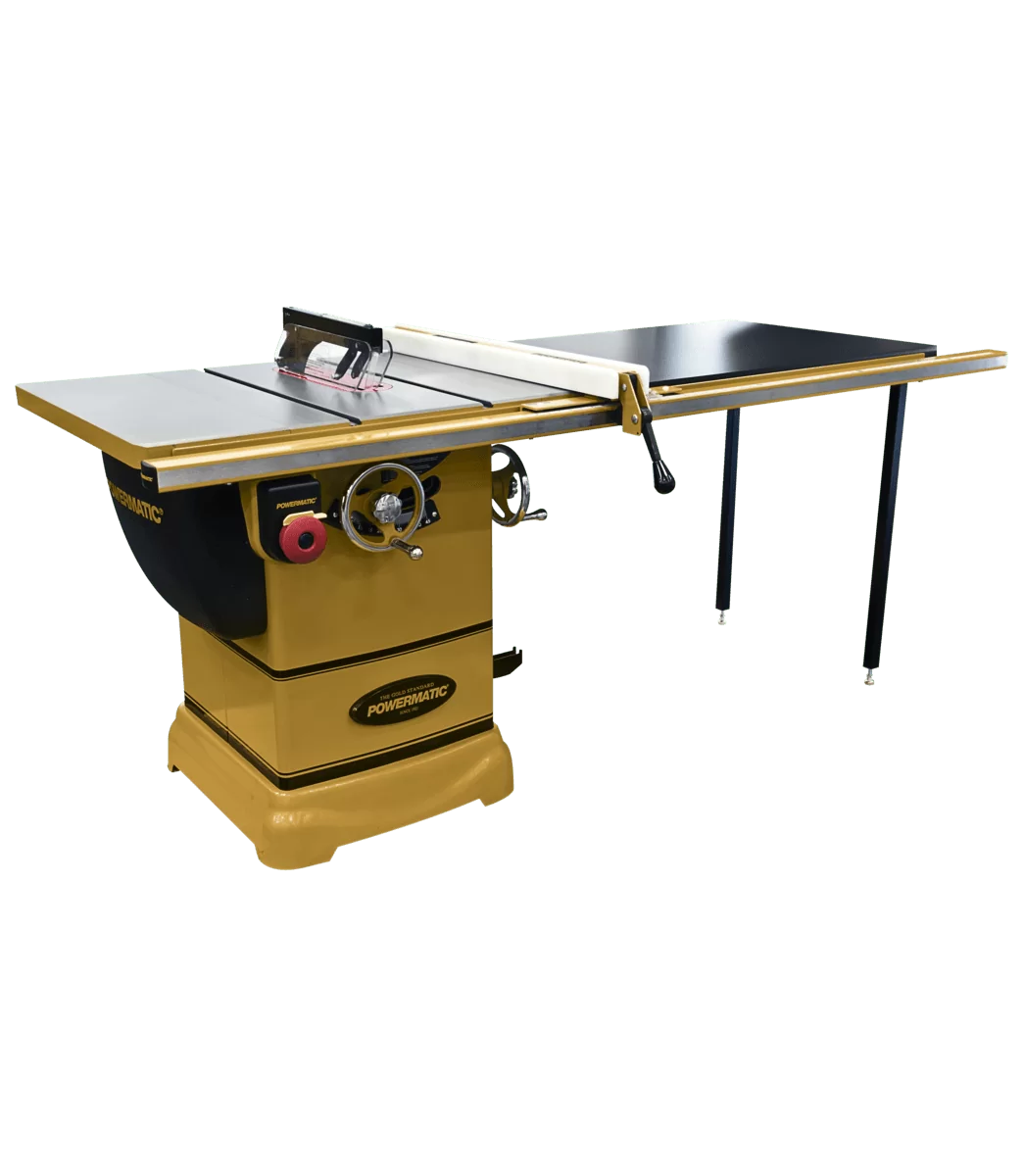

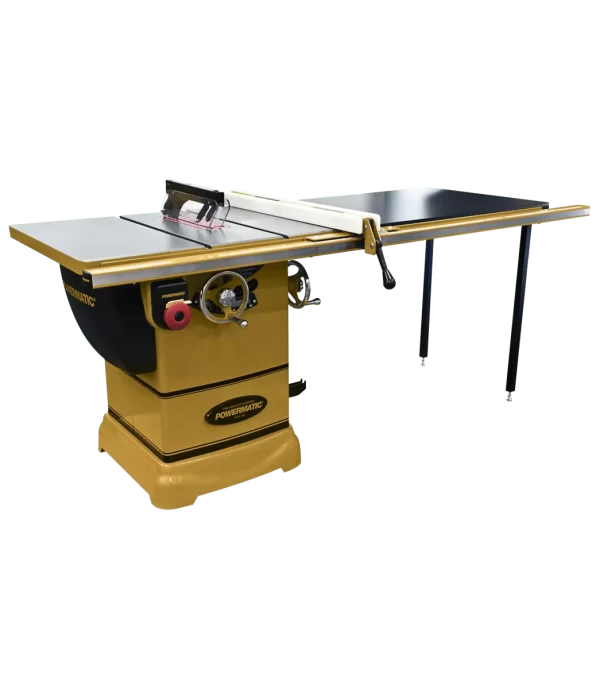

    The Powermatic PM1000 Table Saw features a 1-3/4 HP motor, 52" Accu-Fence system, and a precision-ground cast iron work surface. It operates on 115V power, making it easy to install in most shops. The saw includes an ergonomic 7” handwheel, tool-less blade guard assembly, and a Poly-V belt drive system for reduced vibration. The miter gauge pivots 60 degrees, allowing for a wide range of cuts. It's designed for precision and efficiency in woodworking tasks.

    Warranty: 1 YearUPC: 731325263831 SKU: PM9-1791001K Categories: , , , Tag:

    Specifications

    Stock Number PM9-1791001K
    Arbor Diameter (In.) 5/8
    Arbor Speed (RPM) 4200
    Blade Diameter (In.) 10
    Dust Collection Minimum CFM Required (CFM) 350
    Dust Port Outside Diameter (In.) 4
    Gross Weight (Lbs) 289
    Maximum Depth of Cut at 45 Degrees (In.) 2-1/8
    Maximum Depth of Cut (In.) 2-1/8 or 3-1/8
    Maximum Diameter of Dado (In.) 8
    Maximum Rip Left of Blade (In.) 12
    Maximum Rip Right of Blade (In.) 52
    Maximum Width of Dado (In.) 13/16
    Miter Gauge Type T-Slot with Stops
    Model Number PM1000
    Motor Power (HP) 1-3/4
    Motor Voltage (V.) 115/230
    Net Weight (Lbs.) 289
    Overall Dimensions (L x W x H) (In.) 43 x 83 x 44
    Prewired Voltage (V.) 115
    Recommended Circuit Size (Amps.) 20
    Style (Type) Cabinet
    Table Height from Floor (In.) 34-1/4
    Table in Front of Saw Blade at Maximum Depth of Cut (In.) 10
    Table Type Cast Iron

    Evolution represents a process that is never fully complete. For a woodworker, inspirations evolve as life experiences shape our creativity. Skills evolve as we share tips and techniques with friends and mentors. And our workshops evolve as we refine our skills. At Powermatic, we’re proud to introduce the latest example of our own evolution, the PM1000 cabinet table saw. As with every product Powermatic builds, the PM1000 redefines the limits of design, innovation and durability.

    • Blade surround and collection hose provide an unobstructed path, maximizing dust collection
    • Arbor lock allows for one handed blade changes with minimal tools
    • Conveniently located hands free power switch
    • Ergonomically designed 7” handwheels provide momentum, making blade height and bevel adjustments easy
    • Exclusive Accu-Fence provides rigidity and precision
    • Precision ground cast iron work surface features a beveled edge for smoother operation
    • Requires only 115V connection for easy installation
    • The poly-V belt drive system reduces vibration and maximizes efficiency
    • The sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full range of cuts
    • Toolless guard assembly with independent side leaves is easy to use, maximizing safety

    Shipping Details

    Weight 295 lbs
    Dimensions 45 × 85 × 45 in
    Estimated Delivery

    Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing.
    F.O.B. Details

    ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON)
    Unloading Details

    This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity.
    Shipping Method

    LTL Freight
    Product Type

    Table Saws
