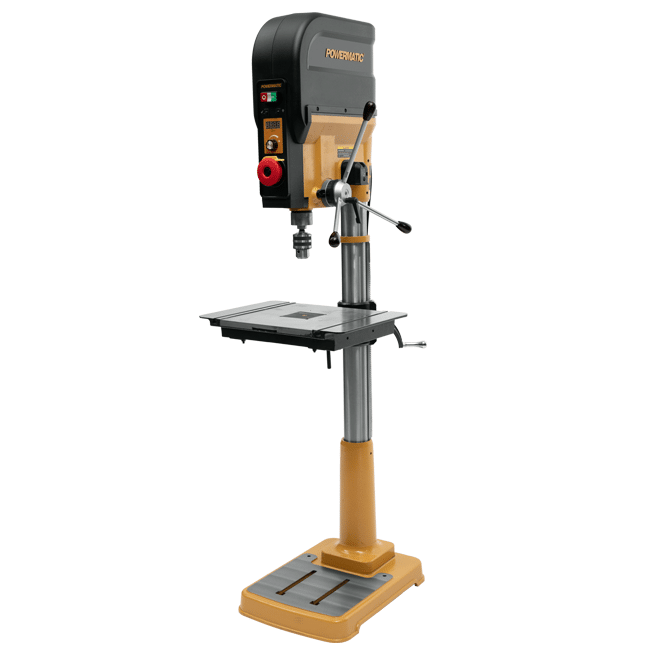

Powermatic PM2820EVS 20-Inch Variable Speed Drill Press

Powermatic PM2820EVS 20-Inch Variable Speed Drill Press

$3,995.00 CAD Funds

Choose an option below:

Questions about this Product? We are here to help! Call us toll-free today: 1 (833) 399-5395

    Questions? Call us Toll-Free 1-(833) 399-5395

    The Powermatic PM2820EVS is a 20-inch variable speed drill press designed for precision woodworking. It features a powerful 1HP motor, electronic variable speed control with a range of 150-3600 RPM, and a large cast iron table that tilts up to 90 degrees. The drill press also includes a digital RPM readout, laser crosshairs for precise drilling, and an integrated depth stop for consistent drilling depth. It's built with a robust cast base for stability, making it ideal for demanding tasks.

    Warranty: 1 YearUPC: 731325833836 SKU: PM9-1792820 Categories: , , Tag:

    Specifications

    Stock Number 1792820
    Base Dimensions (In.) 22.7 x 16.33 x 2.75
    Base Size (In.) 22-3/4 x 16-3/8 x 2-3/4
    Base Work Table (In.) 11.81 x 12.05
    Chuck Distance to Base (In.) 41-1/4
    Chuck Distance to Table (In.) 19-1/4
    Chuck Size (In.) 5/8
    Column Diameter (In.) 3-3/8
    Fence Size (L x H) (In.) 19-3/4 x 2-5/8
    Gross Weight (Lbs) 413.6
    Motor Amps 8
    Motor (HP) 1
    Motor Power (HP) 1
    Motor Voltage (V.) 120
    Net Weight (Lbs.) 336.6
    Number of Spindle Speeds 2 Variable
    Overall Dimensions (L x W x H) (In.) 24.5 x 20.5 x 71.85
    Prewired Voltage (V.) 115
    Quill Diameter (In.) 2.6
    Spindle Distance to Base (In.) 45
    Spindle Distance to Table (Max.) (In.) 23
    Spindle Speed (RPM) 150 – 3600
    Spindle Taper MT2
    Spindle Travel (In.) 6
    Style (Type) Floor
    Swing (In.) 20
    Table Size Fully Extended (L x W) (In.) 20-1/2 x 15-1/2
    Table Size (L x W) (In.) 20-1/2 x 15-1/2
    Table Tilt (Deg.) 90 L/R
    Weight (Lbs.) 336.6
    • Designed for a range of materials and applications

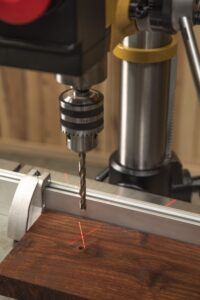

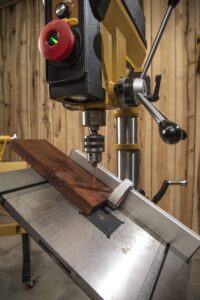

    • For unbeatable accuracy, the laser cross hairs provide precise tool point indication.

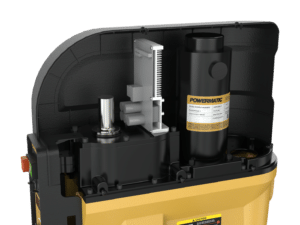

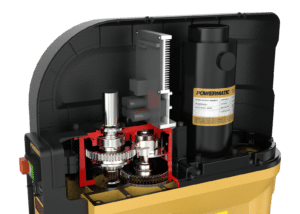

    • Gear driven power transfers torque consistently and efficiently for a wide range of materials.
    • Handles can be reversed for left or right sided operation.

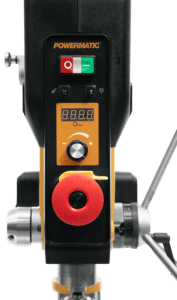

    • Highly visible digital readout gives users control.

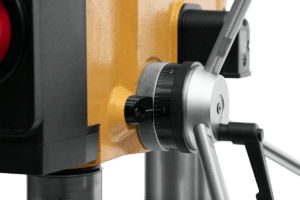

    • Includes Powermatic’s patented integrated depth stop for efficient drilling
    • Includes the most versatile table in the drill press market. Allows insert to be removed for better access to oversized pieces.

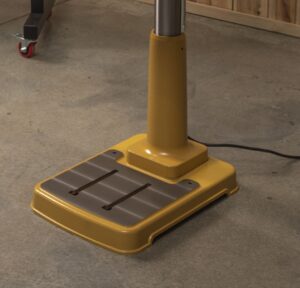

    • Standing on an oversized cast base for outstanding stability for the 20 inch swing.
    • The electronic variable speed means torque is not lost using either the higher or low speed settings. Low speed setting ranges 150 – 870 RPM and the high speed setting ranges 600 – 3600 RPM.
    • The large cast table adjusts to a range of positions and tilts to a full ninety degree position.

    Shipping Details

    Weight 336 lbs
    Dimensions 24 × 24 × 75 in
    Estimated Delivery

    Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing.
    F.O.B. Details

    ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON)
    Unloading Details

    This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity.
