Baileigh RDB Square Tube Bender Die Set, 1-1/2″, 5″ CLR

Name: Baileigh RDB Square Tube Bender Die Set, 1-1/2″, 5″ CLR - Onix Machinery Sales Ltd.
SKU: BA9-DS1500SR500B
Price: 1835.00 CAD
Availability: InStock

$1,835.00 CAD Funds

Choose an option below:

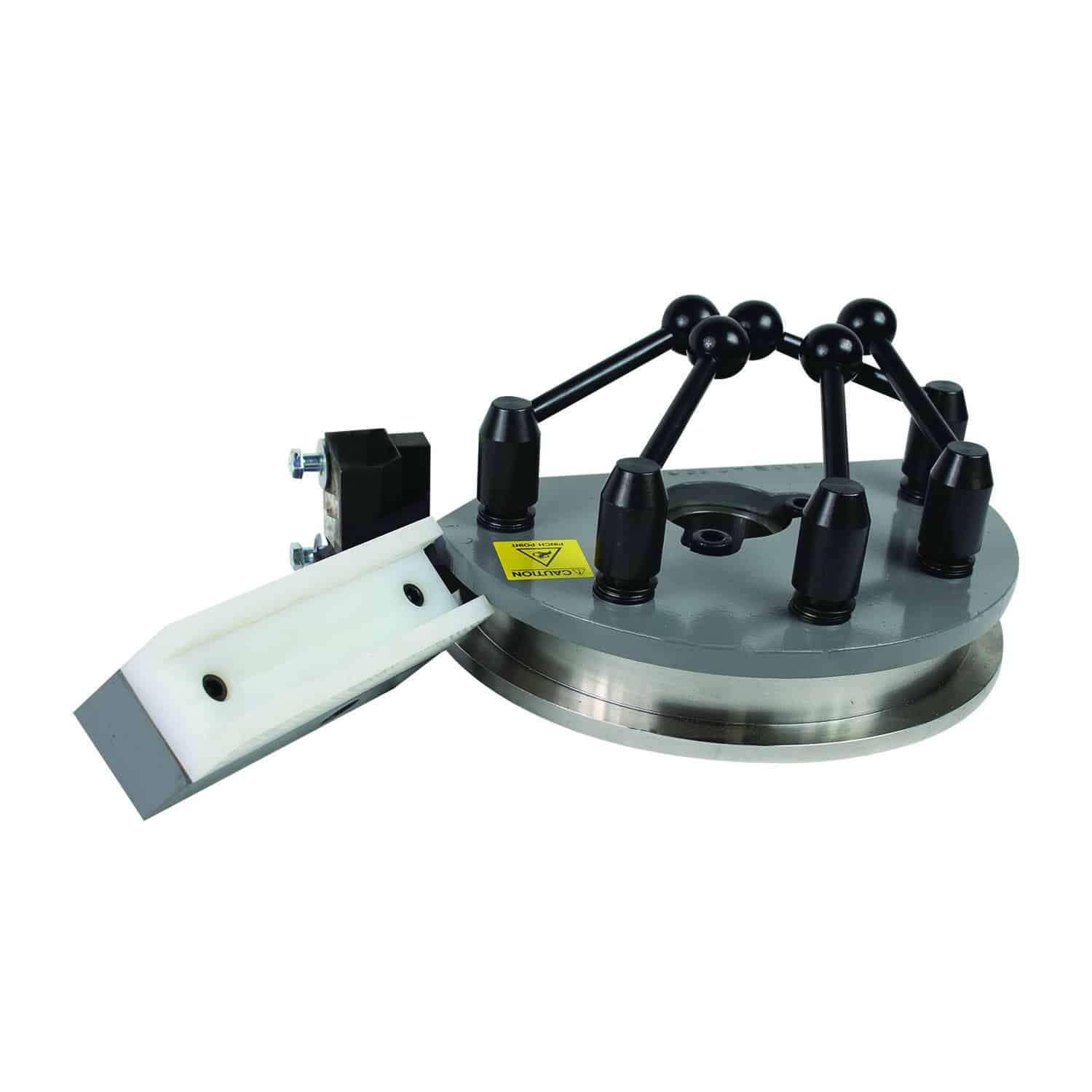

The Baileigh RDB Square Tube Bender Die Set is designed for 1-1/2" square tubes with a 5" centerline radius. It fits Baileigh Industrial rotary draw benders (excluding the RDB-050) and the Edwards HPST2375 Rotary Draw Bender. Key features include a 1018 billet steel forming die, replaceable counter die inserts, a split die top cap with release handles, and an open-side hook arm for easy tube insertion and removal. Optional hardened dies are available for heavy wall bending.

Warranty: 1 Year SKU: BA9-DS1500SR500B Categories: Baileigh Bender Die Sets, Baileigh Square Tube Bender Die Sets, Tube & Pipe Benders

Specifications

1-1/2″ Square tube die set with a 5 Inch Centerline Radius.
Fits on all Baileigh Industrial rotary draw benders that accept drop on tooling (Not RDB-050).
Centerline radius is based on .083″ wall thickness.

***Also fits EDWARDS HPST2375 Rotary Draw Bender with Powerlink Source***

1018 billet steel forming die
Non-proprietary spindle bore
Rectangle die configurations available at request
Replaceable / Consumable counter die Plastic slide insert for counter die block
Optional hardened 4140 billet dies for production heavy wall bending
Split Die Top Cap with release handles for easy of material release from forming die
Welded / Bolted open side hook arm with clamping strap, for easy tube insertion and removal

Shipping Details

Weight	85 lbs
Dimensions	24 × 24 × 24 in
Estimated Delivery	Not usually in Stock; however, "Request a Quote" or give us a call and we will find out what the Estimated Delivery will be and let you know.
F.O.B. Details	Bender Dies Usually Ship from London, ON.
Unloading Details	This package weighs less than 100 Lbs.
Shipping Method	Parcel Shipping (UPS, Canada Post or Purolator)
Product Type	Tube and Pipe Bender Dies
