Baileigh CS-C485SA

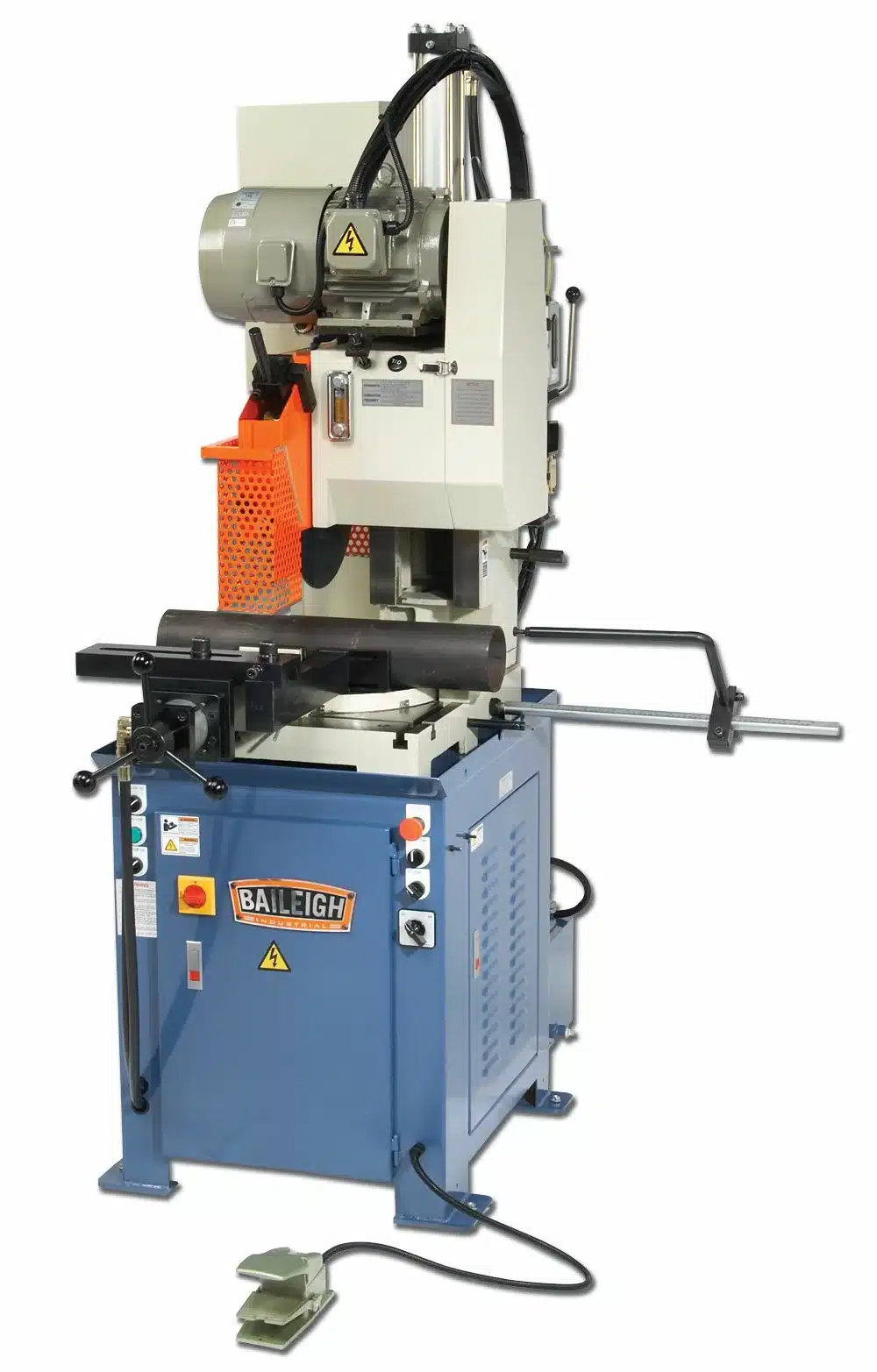

Baileigh CS-C485SA Semi-Automatic Cold Saw

$43,995.00 CAD Funds

Choose an option below:

Questions about this Product? We are here to help! Call us toll-free today: 1 (833) 399-5395

    Questions? Call us Toll-Free 1-(833) 399-5395

    The Baileigh CS-C485SA is a semi-automatic cold saw designed for heavy-duty metal cutting. It features a 5 hp motor, four cutting speeds, and an 18.9” blade, suitable for large materials. The saw offers mitering capabilities (45° left and right) and includes a hydraulic downfeed, self-centering vise, and a flood coolant system for precise, clean cuts. It is ideal for high-volume production environments requiring efficiency and accuracy.

    Warranty: 1 YearUPC: 19907702986 SKU: BA9-1002634 Categories: , ,

    Specifications

    Stock Number BA9-1002634
    Model Number CS-C485SA
    Motor (HP) 5 hp
    Solid Round at 45 Degrees (In.) 2.36″
    Solid Round at 90 Degrees (In.) 2.75″
    Style (Type) Single Action
    Tubing Rectangle at 45 Degrees (In.) 3.93″ x 1.96″
    Tubing Rectangle at 90 Degrees (In.) 4.72″ x 1.96″
    Tubing Round at 45 Degrees (In.) 4.5″
    Tubing Square at 45 Degrees (In.) 3.93″ x 3.93″
    Tubing Square at 90 Degrees (In.) 2.75″
    Weight (Lbs.) 1900
    • Features include: 5 hp blade motor runs on 220-volt 3-phase power, accepts up to a 16.5” blade, comes with both standard flat and Vee jaws, and a Yaskawa® inverter drive that controls the variable speed from 40 to 240 rpm
    • Hardened and ground 2” slideways are attached to the solid column for durability and trouble-free movement
    • Efficient combination of drive motor, hydraulic feeding system, and coolant system will provide decades of profitable use, even in a demanding shop
    • Hydraulic downfeed and upfeed can efficiently tackle high production applications – You can limit the upward stroke or travel for faster cycle times and production
    • Semi-automatic system is simple to operate: just step on the foot pedal and the blade will descend to cut your material while oiler system, with one-shot lube, keeps the saw head moving smoothly
    • Foot pedal clamps the hydraulic self-centering vise. You don’t have to adjust when switching between material sizes due to after cutting, the blade automatically shuts off and returns to home position
    • American-style vise has jaws on both sides of the material to increase blade life. Vise slides to allow for a continuously variable range of positions
    • Metered stop rod ensures repeatable lengths for efficient production
    • Rigid base gives the saw the structural strength to cut large volumes of maximum capacity material built with a steel framework that prevents wobbling and maintains accuracy
    • Flood coolant system makes blades last longer and maintains a high cut quality while integrated chip brush cleans away debris for increased blade life

    Shipping Details

    Weight 1900 lbs
    Estimated Delivery

    Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing.
    F.O.B. Details

    ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON)
    Shipping Method

    LTL Freight
    Unloading Details

    This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity.
    Product Type

    Cold Cut Saws
