Baileigh CS-275EU Manual Cold Saw

Baileigh CS-275EU Manual Cold Saw

$4,595.00 CAD Funds

Choose an option below:

Questions about this Product? We are here to help! Call us toll-free today: 1 (833) 399-5395

    Questions? Call us Toll-Free 1-(833) 399-5395

    The Baileigh CS-275EU is a high-performance manual cold saw designed for precision cutting in metal fabrication. It features a 1.5 hp motor, an 11” blade, and a dual-mitering head that can cut various materials, including pipe, angle iron, and solid bar, with a maximum round tube capacity of 3.25 inches at 90°. The saw includes a European-style cam lock vise for quick material changes, a flood coolant system to extend blade life, and a cast iron base for stability during operation.

    Warranty: 1 YearUPC: 731325401943 SKU: BA9-1002434 Categories: , ,

    Specifications

    Stock Number BA9-1002434
    Model Number CS-275EU
    Motor (HP) 1.5 hp
    Solid Round at 45 Degrees (In.) 3.25″
    Solid Round at 90 Degrees (In.) 3.25″
    Style (Type) Single Action with Cam Lock
    Tubing Rectangle at 45 Degrees (In.) 2.2″ x 2″
    Tubing Rectangle at 90 Degrees (In.) 3.1″ x 2″
    Tubing Round at 45 Degrees (In.) 3.25″
    Tubing Square at 45 Degrees (In.) 2.2″ x 2.2″
    Tubing Square at 90 Degrees (In.) 3.25″
    Weight (Lbs.) 460

    The CS-275EU makes pristine cuts as only a cold saw can. It’s ideal for light metal fabrication and chassis. A cast iron base and flood coolant system ensure a long lifetime of use.

    Recommended for:
    *Hobbyists that need a bigger saw than our CS-250
    *Maintenance departments in full production shops
    *Custom R&D shops

    • Blade turns at 54 rpm and accepts an 11” blade (included)
    • 3.25” round tube capacity at 90°, big enough for just about any chassis project
    • Miters up to 45° left and right while the Dual-mitering head lets you tackle various shapes and materials like pipe, angle iron, and solid bar
    • Robust 1.5 hp motor runs on 110-volt power, so you can use it anywhere
    • Fully cast-iron head will deliver clean cuts for many years

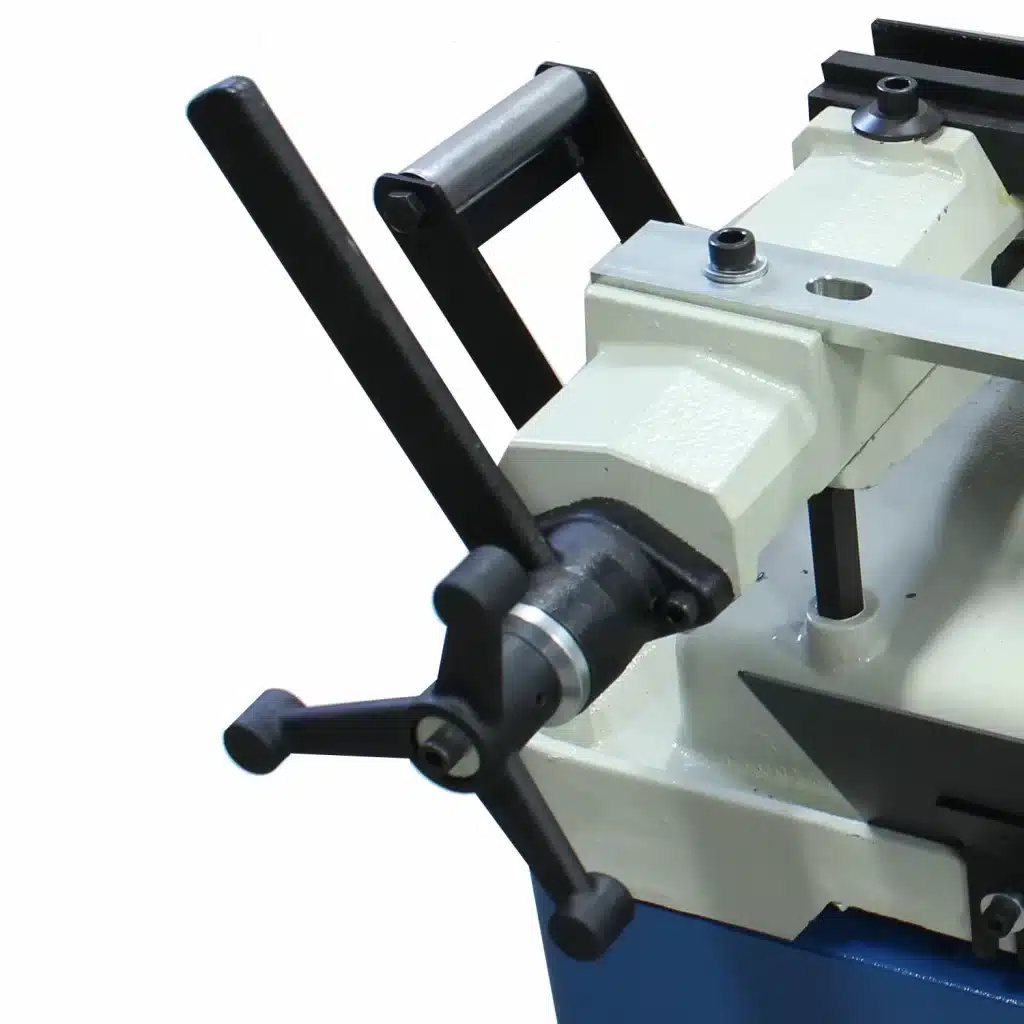

    • European-style vise with a cam lock allows for fast material loading and unloading. Vise supports the material on opposite sides of the blade to maintain high cut quality
    • Material stop rod lets you conveniently set up repeatable cuts for production runs
    • Solid cast iron saw base keeps the machine stable, so that the blade cuts accurately
    • Saw sits on top of a sturdy steel stand that puts the machine at a comfortable cutting height

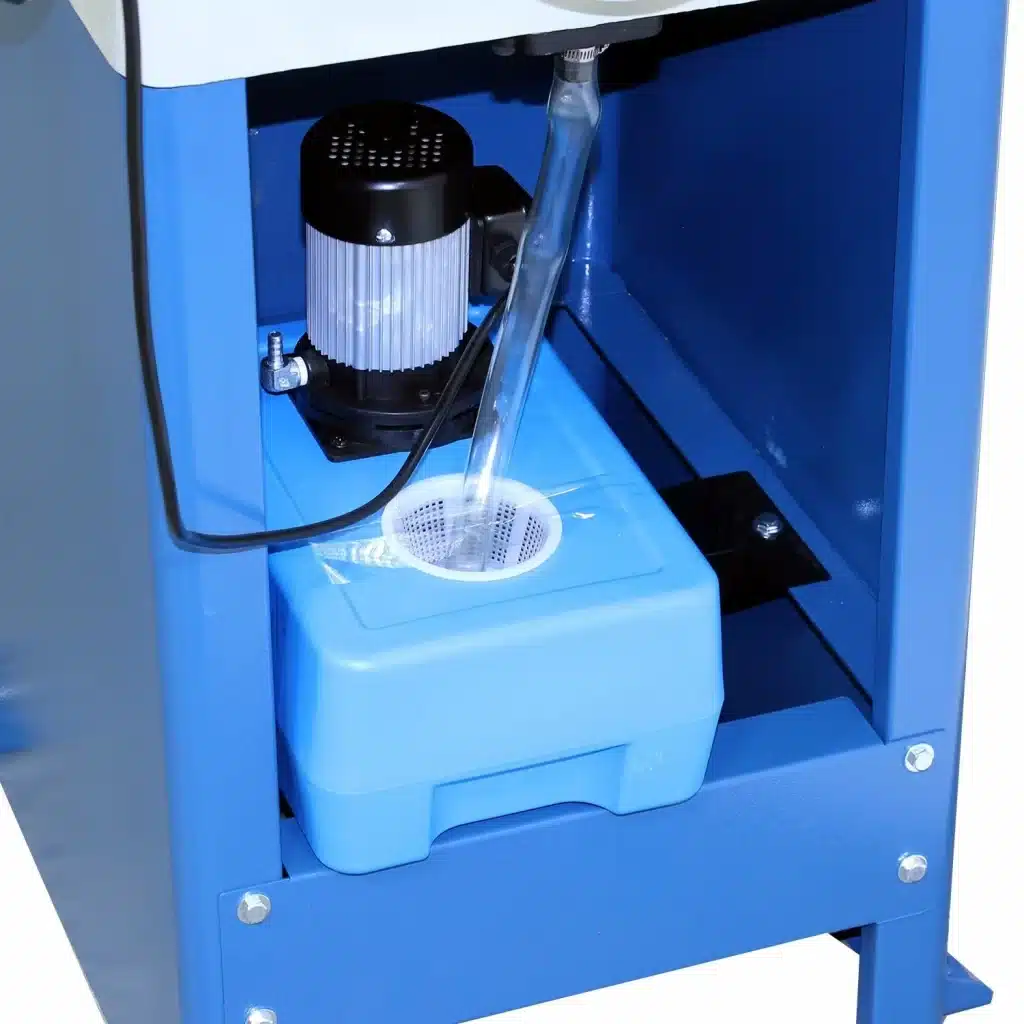

    • Flood coolant system helps the operator cut material more easily and prolongs blade and machine life

    Shipping Details

    Weight 460 lbs
    Dimensions 48 × 31 × 42 in
    Estimated Delivery

    Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing.
    F.O.B. Details

    ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON)
    Shipping Method

    LTL Freight
    Unloading Details

    This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity.
    Product Type

    Cold Cut Saws
