Specifications
| Item Number |
BSV-24VS-V2 |
| Speed Control |
Inverter |
| Table Size |
24″x24″(cast) & 7.8″x24″(steel) |
| Welder Capacity |
.74″ |
| Slant of Table |
45°R & 15°L |
| Motor |
3 hp |
| Maximum Thickness |
12.2″ |
| Included Accesories |
Blade welder, LED work light, Chip blower, Rip fence, Miter gauge |
| Throat Depth |
23.6″ |
| Table Height |
36.4″ |
| Blade Length |
177.95”-179.13″(4520-4550mm) |
| Blade Speed (fpm) |
85-2200 Variable Speed |
| Blade Thickness |
.032″ |
| Power |
220V / 3-phase |
| Shipping Weight |
1025 lbs |
| Included Blade Size |
0.118”(13mm) x 14T |
| Shipping Dimensions (Inches) |
53.54”x33.46”x85.43” |
| Machine Dimensions (L x W x H) |
49.6″x33″x86.22″ |
* specifications subject to change without notice.

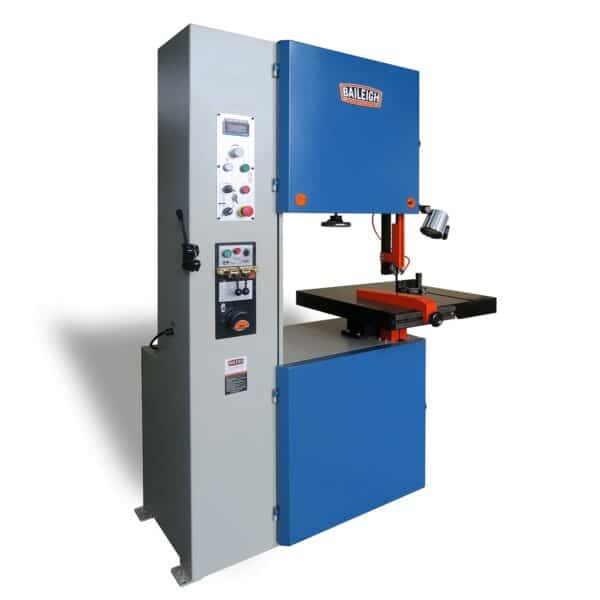

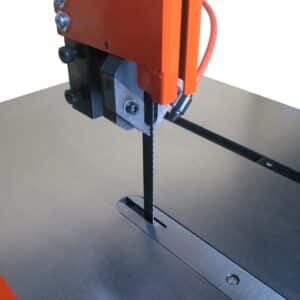

The BSV-24VS-V2 is the largest non-mitering vertical bandsaw in our line up, this metal cutting band saw increases capacity and adds variable-speed. Make straight and curved cuts with the vertical blade.
- 3 hp motor runs on 220-volt three phase power.
- Wide 23.6″ throat depth.
- 12.2” maximum cutting thickness.
- Accepts standard 1/8” to 5/8” blades.

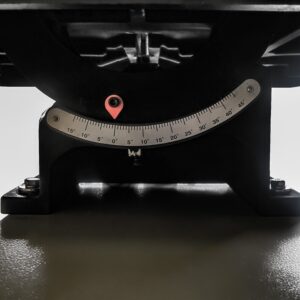

- Cast iron table can pivot left to right.

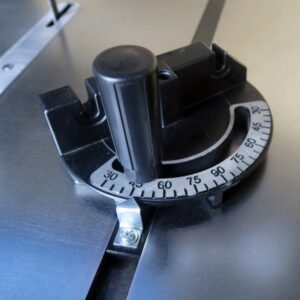

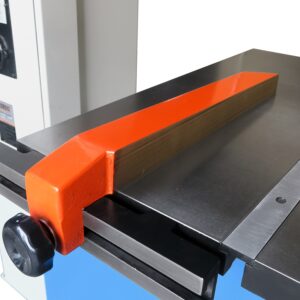

- Includes a cast iron mitering system, rip fence, and protractor to make sure your cuts are straight and repeatable.
- Inverter controlled variable speeds from 85 to 2200 fpm allows you to adjust the speed for cutting wood, metal, and even plastic.
- DRO lets you see the blade speed, so you can choose the right settings for your material and extend blade life.
- This band saw includes everything you need to cut out the center of the material without having to fix a cut through it.

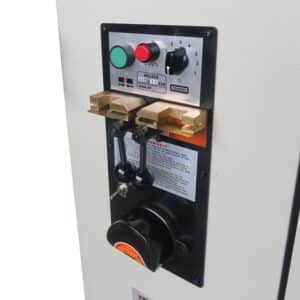

- Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together.
- Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades.
- Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.
- Air blowdown system cools the blade and keeps the saw clean from material chips and shavings.
- Halogen work light lets you see what you’re cutting more clearly.
- Covered by a 1-year parts warranty.
- Both the saw and its replacement parts are typically in stock for fast deliveries.
- Includes lifetime technical support by phone. You can call our team of experienced reps whenever you need help with this metal-cutting band saw.
Recommended for: Any shop that cuts a variety of materials, such as aluminum, plastic, mild steel, and chrome alloy.
