Baileigh BS-24SA-DM Semi-Automatic Dual Mitering Horizontal Band Saw

Baileigh BS-24SA-DM Semi-Automatic Dual Mitering Horizontal Band Saw

$44,495.00 CAD Funds

Choose an option below:

Questions about this Product? We are here to help! Call us toll-free today: 1 (833) 399-5395

    Questions? Call us Toll-Free 1-(833) 399-5395

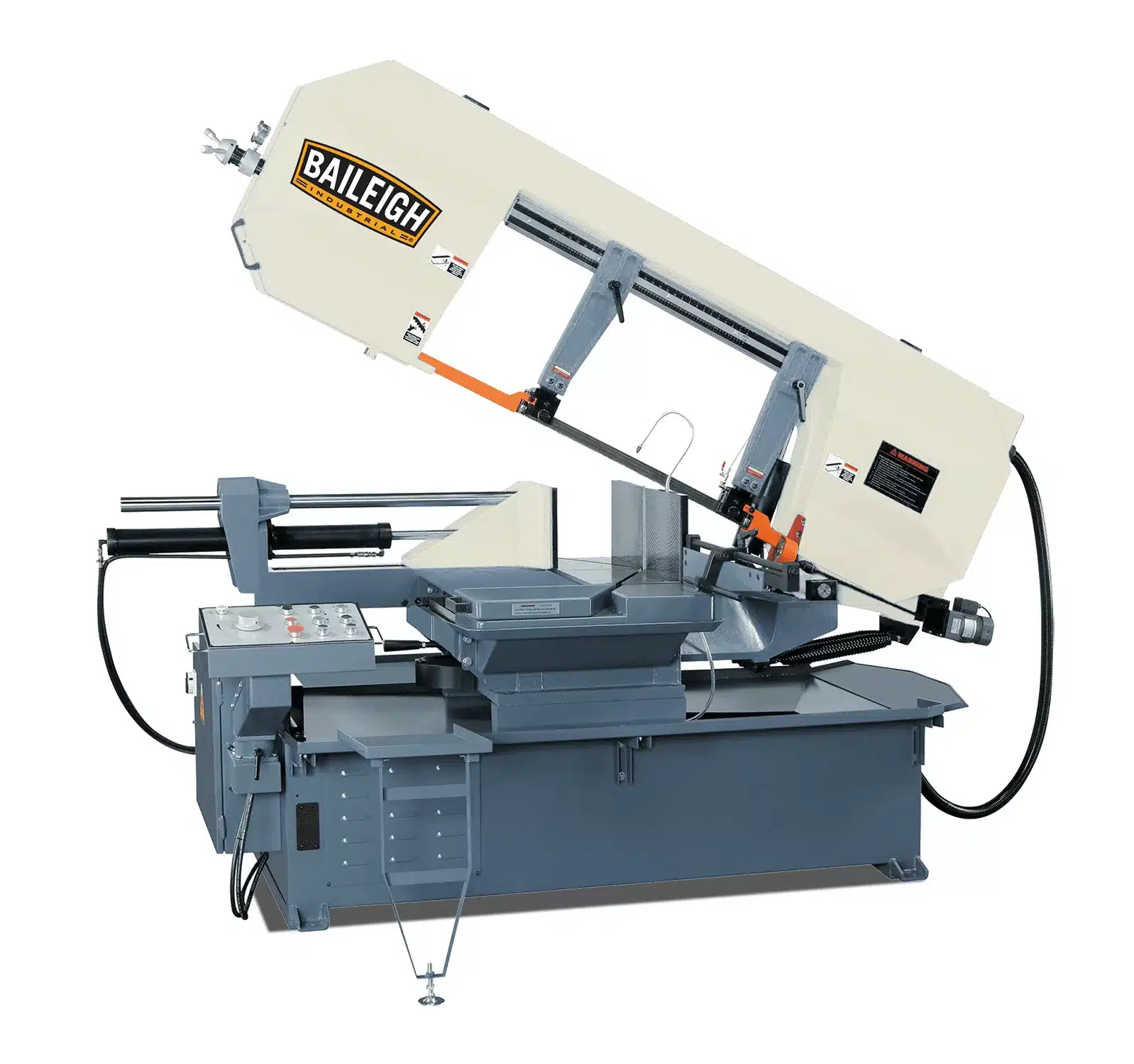

    The Baileigh BS-24SA-DM is a semi-automatic dual mitering horizontal band saw designed for industrial metal cutting. It features a 5 hp motor, variable blade speeds (106–317 SFPM), and a cutting capacity of up to 18” round at 90°. The saw includes a dual miter swivel head that adjusts 60° left and right, hydraulic descent, and a flood coolant system for efficient operation. Built with a sturdy cast iron vise and bow, it ensures stable and accurate cuts for high-volume production.

    Warranty: 1 YearUPC: 731325397307 SKU: BA9-1001389 Categories: , ,

    Specifications

    Stock Number BA9-1001389
    Blade Guide Carbide x Roller
    Blade Speeds (SFPM) 106 – 317
    Capacity Round 45 17.5
    Capacity Round 90 18.1
    Capacity Round 90 X 45 X 60 18″ x 15.7″ x 11″
    Descent Control Pressure Assist Hydraulic
    Drive Belt x Pulley
    Input Power 220 Volt Three Phase
    Type of Miter Adjustment Dual Miter Swivel Head
    Miter Angle Range (Deg.) 0 – 60° Left and Right
    Model Number BS-24SA-DM
    Motor (HP) 5 hp
    Return Hydraulic
    Shipping Dimensions (L x W x H) (In.) 111x45x74
    Solid Rectangle at 90 Degrees (In.) 17″ x 24″
    Table Height (In.) 31.5″
    Weight (Lbs.) 3550
    • Cuts 18” round or 15” x 24” rectangle at 90° and swivel head miters 60° left and right
    • Accepts a standard 1.5” blade (included). This width makes the cutting fast and accurate
    • 106 to 317 fpm variable blade speed, allowing for infinite blade speed adjustments. Adjustable speed lets you fine-tune for different materials, like mild steel, bronze, or aluminum
    • Runs on 220-volt 3-phase power for reliability
    • Sturdy cast iron vise and bow prevent wobbling and keep cuts accurate and electro-welded steel frame stabilizes the machine, reducing vibrations for many years of accurate cuts
    • Semi-automatic system with hydraulic down feed speeds up production. You just put the material in place and start the controls. The saw will take care of the rest
    • Industrial-grade hydraulics open and close the quick-lock vise with flood coolant system that washes away metal chips and helps prolong blade life
    • Adjustable hydraulic descent pressure helps you achieve faster cut times and longer blade life
    • You can change the return position of the saw head for faster cycle times between cuts on smaller dimensioned pieces

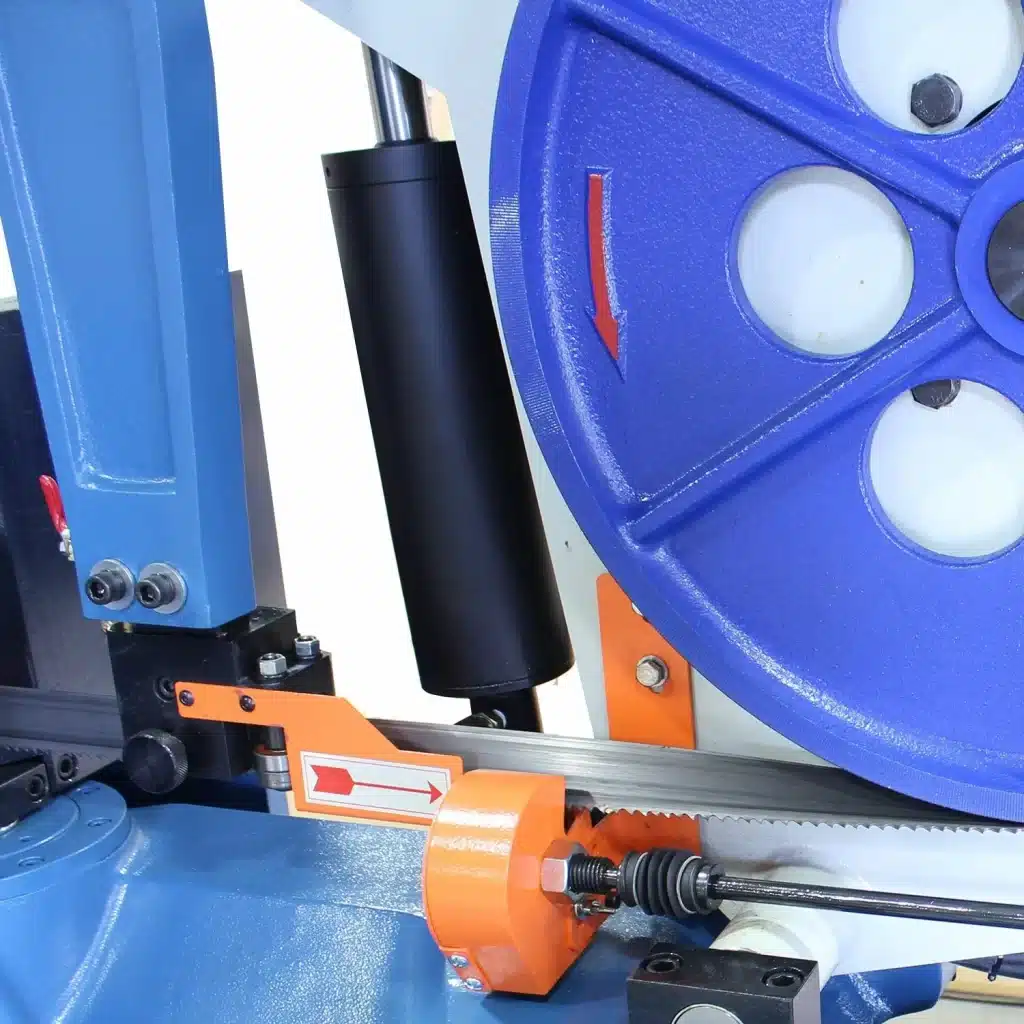

    • Patented blade tension device allows you to set the right tension quickly and easily. Line up the black arrow with the green liquid-filled gauge

    Shipping Details

    Weight 3550 lbs
    Dimensions 111 × 45 × 74 in
    Estimated Delivery

    Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing.
    F.O.B. Details

    ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON)
    Shipping Method

    LTL Freight
    Unloading Details

    This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity.
    Product Type

    Horizontal Band Saws
