Baileigh HPB-20 Horizontal Bending Press

Baileigh HPB-20 Horizontal Bending Press

$24,195.00 CAD Funds

Choose an option below:

Questions about this Product? We are here to help! Call us toll-free today: 1 (833) 399-5395

    Questions? Call us Toll-Free 1-(833) 399-5395

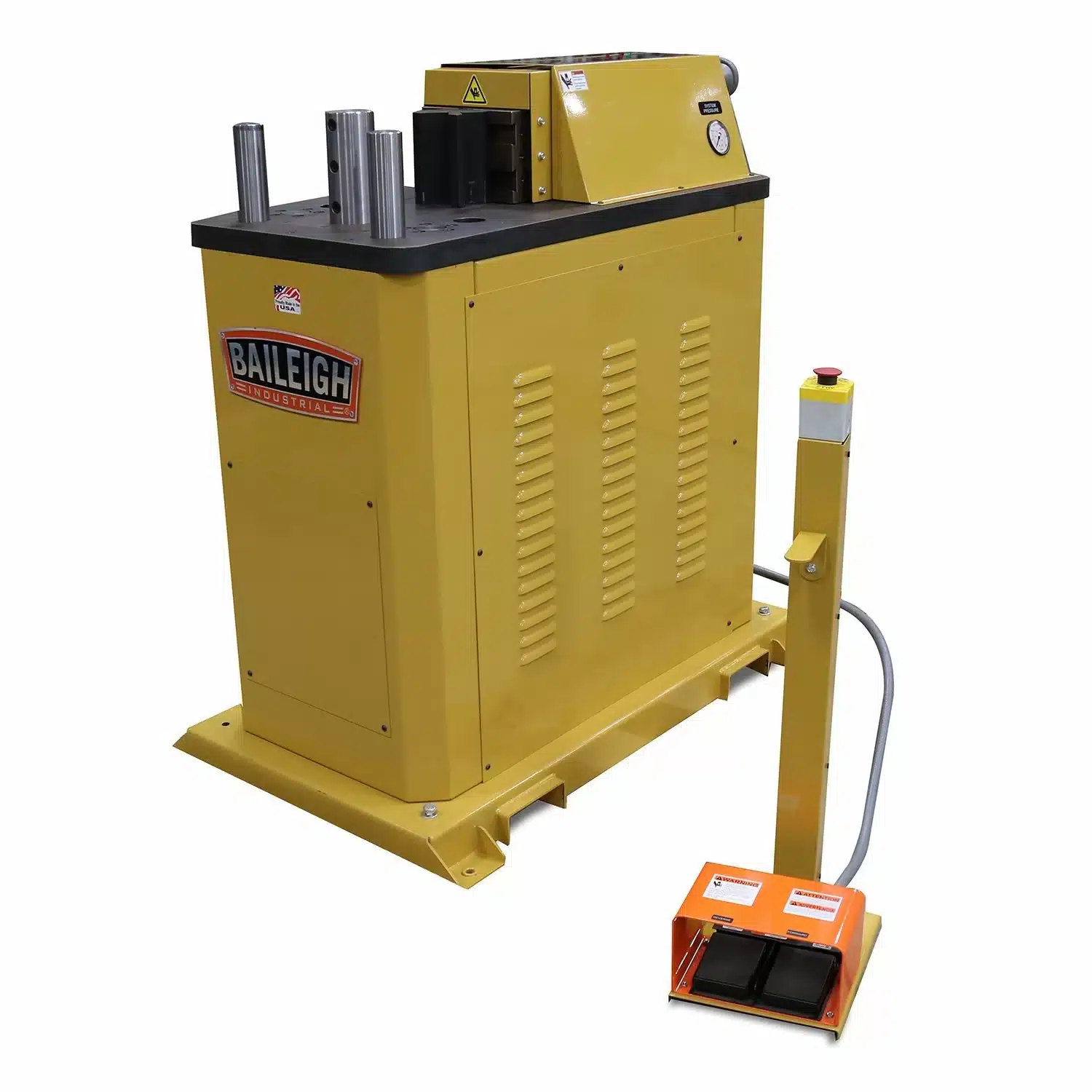

    The Baileigh HPB-20 Horizontal Bending Press is a powerful machine designed for precision metalworking. It features a 20-ton capacity, a 12” stroke length, and operates on 220V single-phase power. The press includes a foot pedal for hands-free operation, a quick-release tooling system, and comes with Multi-V tooling. It’s user-friendly and suitable for various bending tasks, with an industrial-grade hydraulic system to ensure consistent results.

    Warranty: 1 YearUPC: 19907434412 SKU: BA9-HPB20 Categories: , ,

    Specifications

    Stock Number BA9-HPB20
    Cylinder (In) 4″

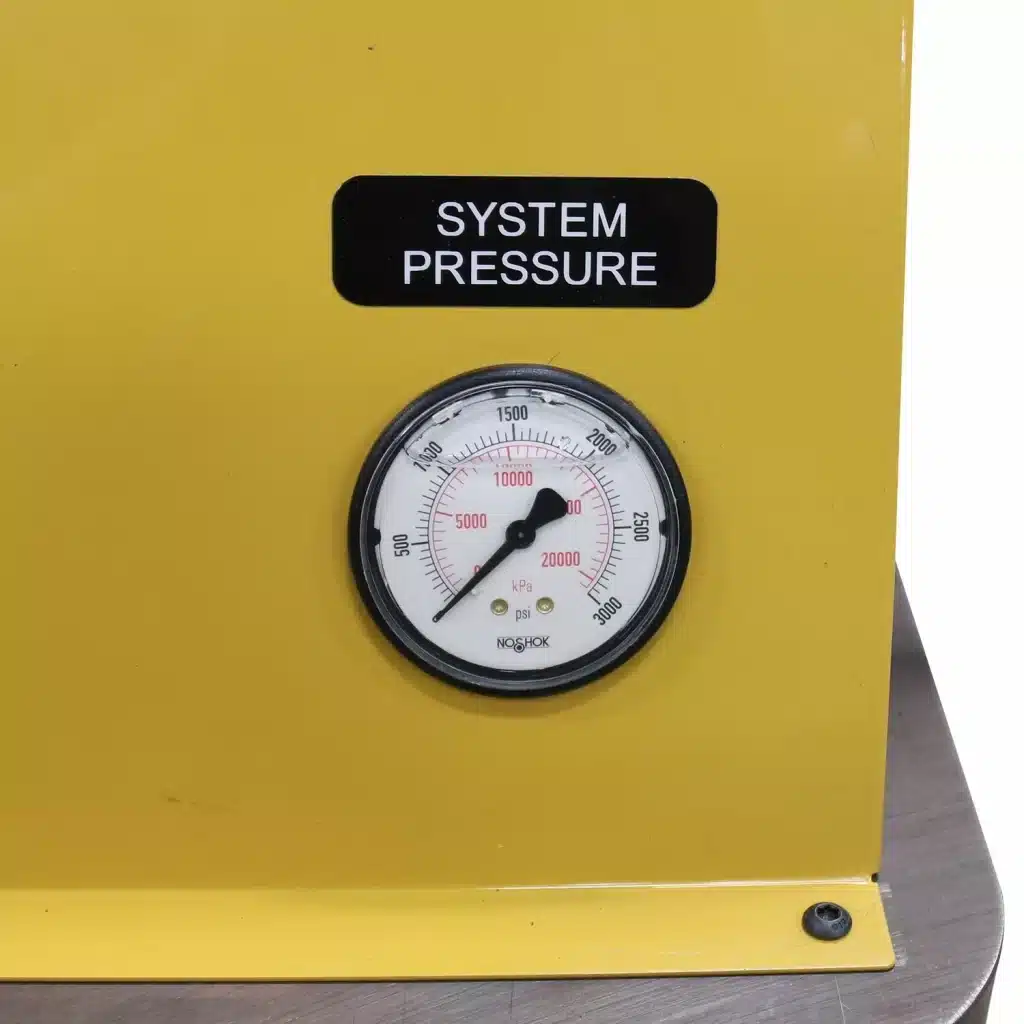

    Hydraulics (PSI) 2750
    Minimum Return Speed (In./Sec) .78″ / sec.
    Model Number HPB-20
    Punch Open Height (In) 6
    Rating (Tons) 20
    Stroke (In.) 12
    Work Height (In.) 39
    Fixture Holes 1 @ 3″ dia. / 3 @ 2″ dia.
    Input Power 220V / 1-phase
    Motor (HP) 5 hp



    • 5 hp motor produces up to 20 tons of pressure.
    • 12” stroke length.
    • Horizontal bending press machine runs on 220-volt 3-phase power.
    • Industrial-grade hydraulic system is located on top of the metal press brake to reduce flex.
    • Designed for simple operation. In 15 minutes, anyone could learn to run it.

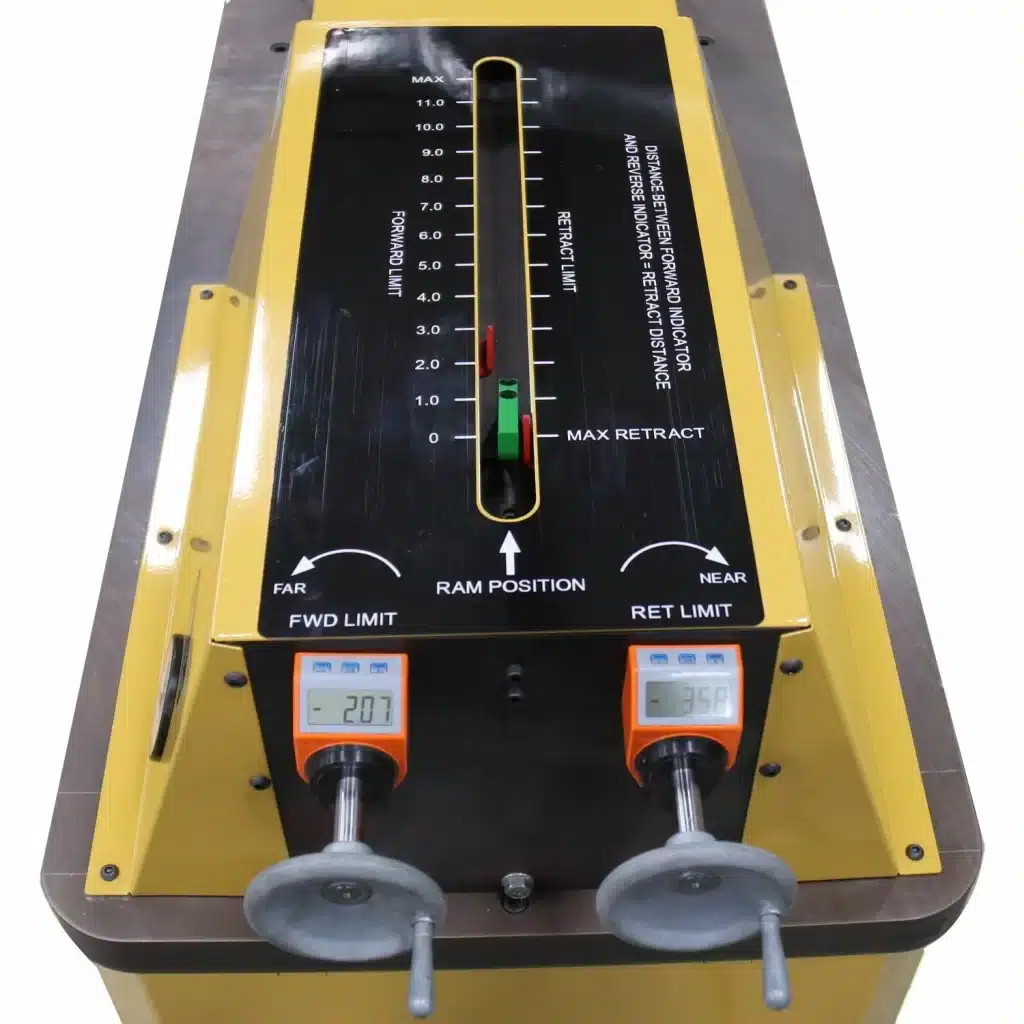

    • Control the bending stroke with the foot pedal, so your hands are free to guide the material.
    • Machined table, 39” high, keeps your material perfectly level. No need to hold one side and hope it’s lined up!

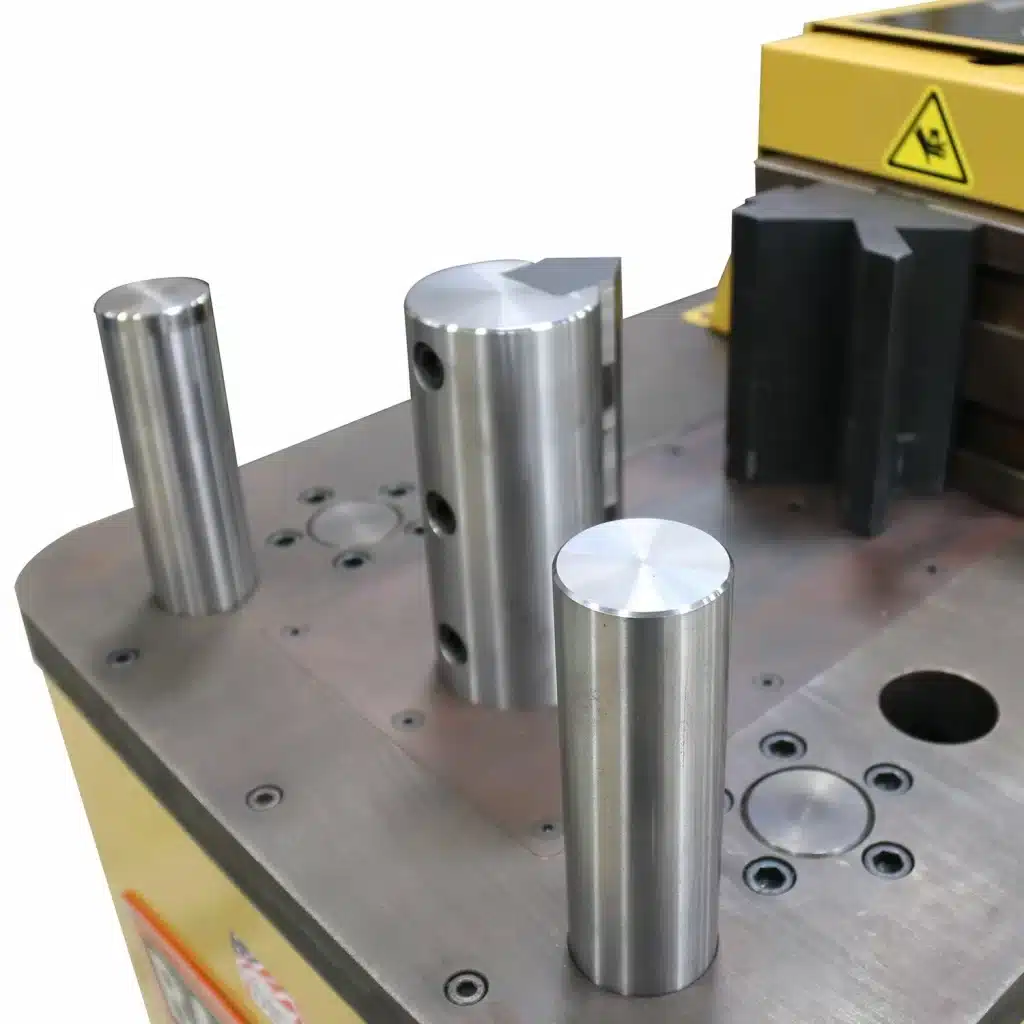

    • Quick-release tooling system makes changes fast and simple.

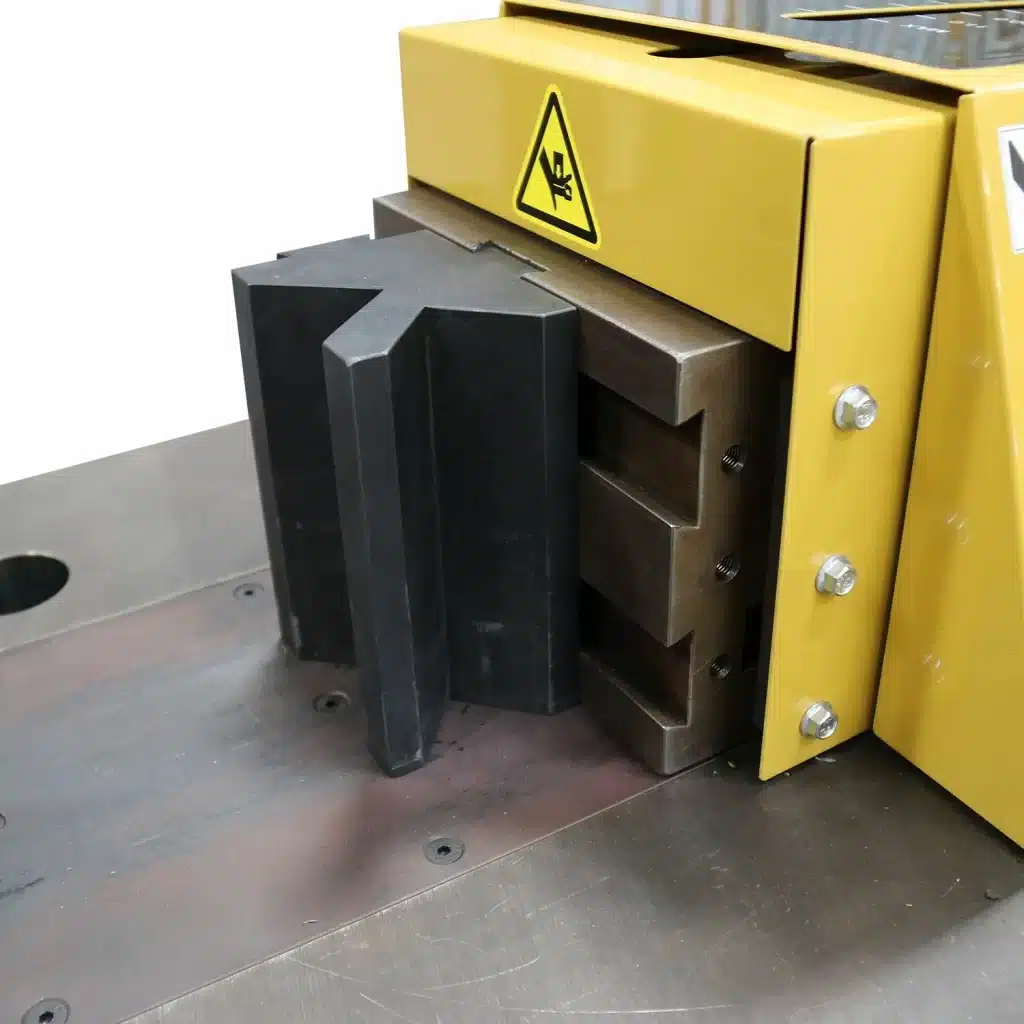

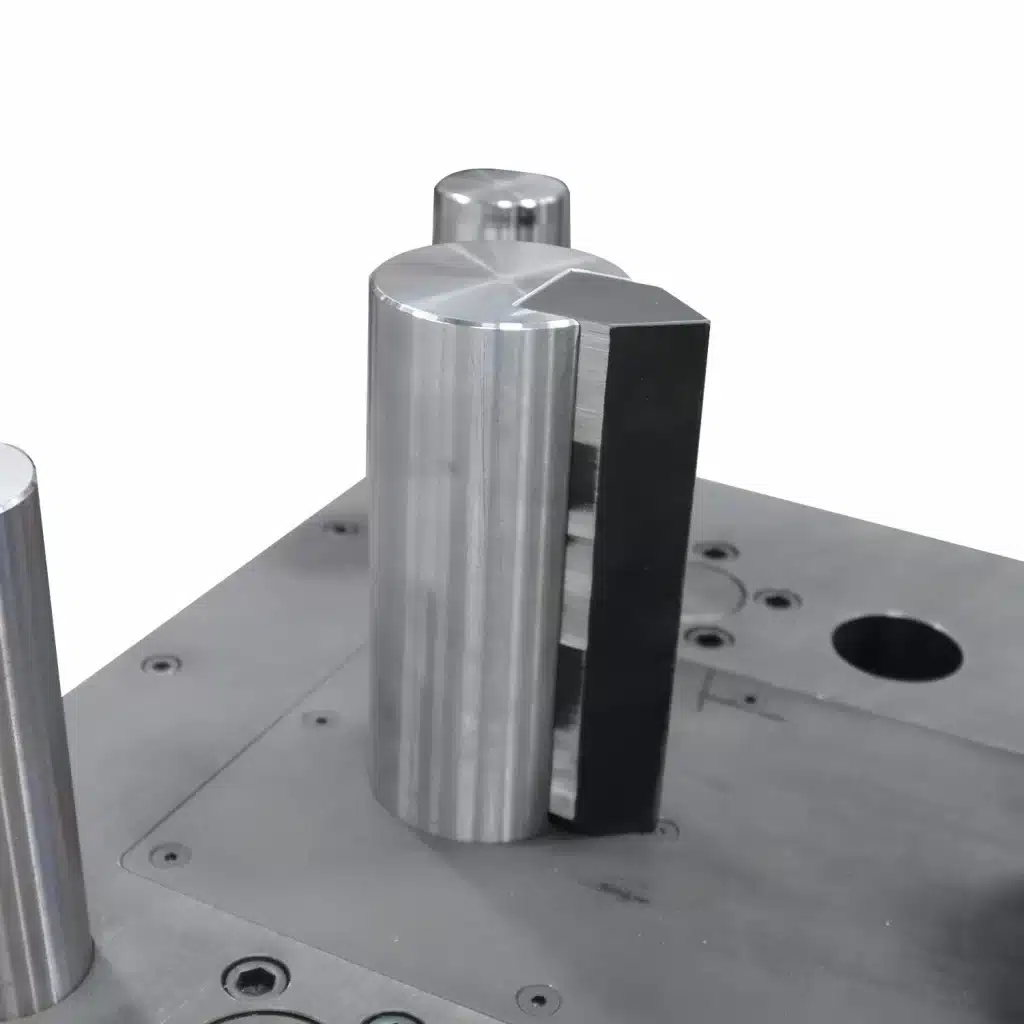

    • Includes Multi-V tooling (V-opening die and V post).
    • Many additional tooling sets are available. We can find the right one for your project or create a custom set, if necessary.

    Shipping Details

    Weight 200 lbs
    Dimensions 60 × 30 × 48 in
    Estimated Delivery

    Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing.
    F.O.B. Details

    ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON)
    Unloading Details

    This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity.
    Product Type

    Hydraulic Press Brakes
    Shipping Method

    LTL Freight
