Specifications
| Item Number |
BP-3305CNC |
| Table Size |
63″ x 7″ |
| Programming |
40 Programs/ 25 Steps per Program |

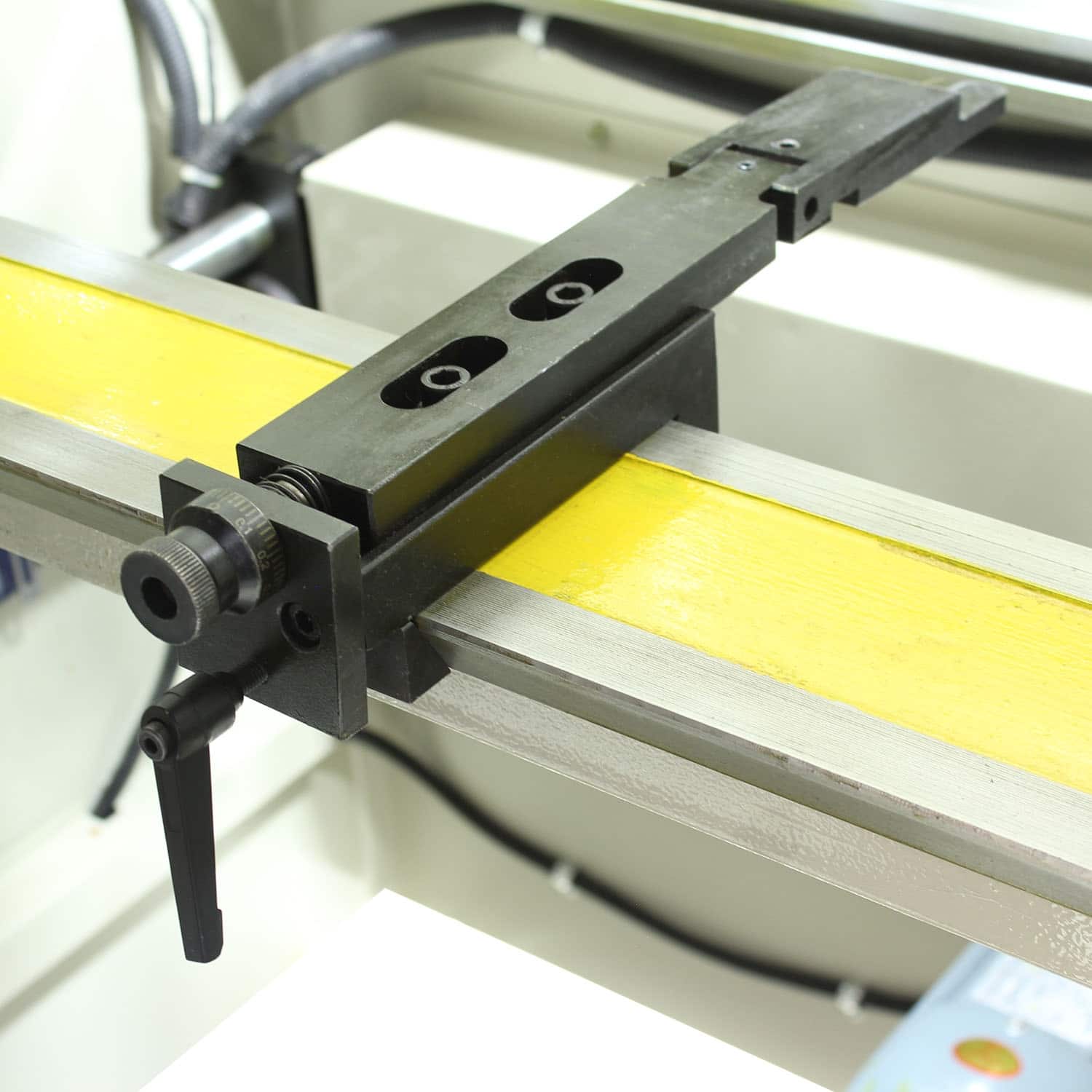

| Back Gauge Length |
21.5″ |
| Return Speed |
3.3″ / sec. |
| Pressure |
33 Tons |
| Included Tooling |
78° Gooseneck & Multi-Vee Die (5/16″, .39″, .47″, 5/8″, .94″, 1-1/4″, 2″) |
| Throat Depth |
8″ |
| Stroke Distance |
3.15″ |
| Approach Speed |
3.5″ / sec |

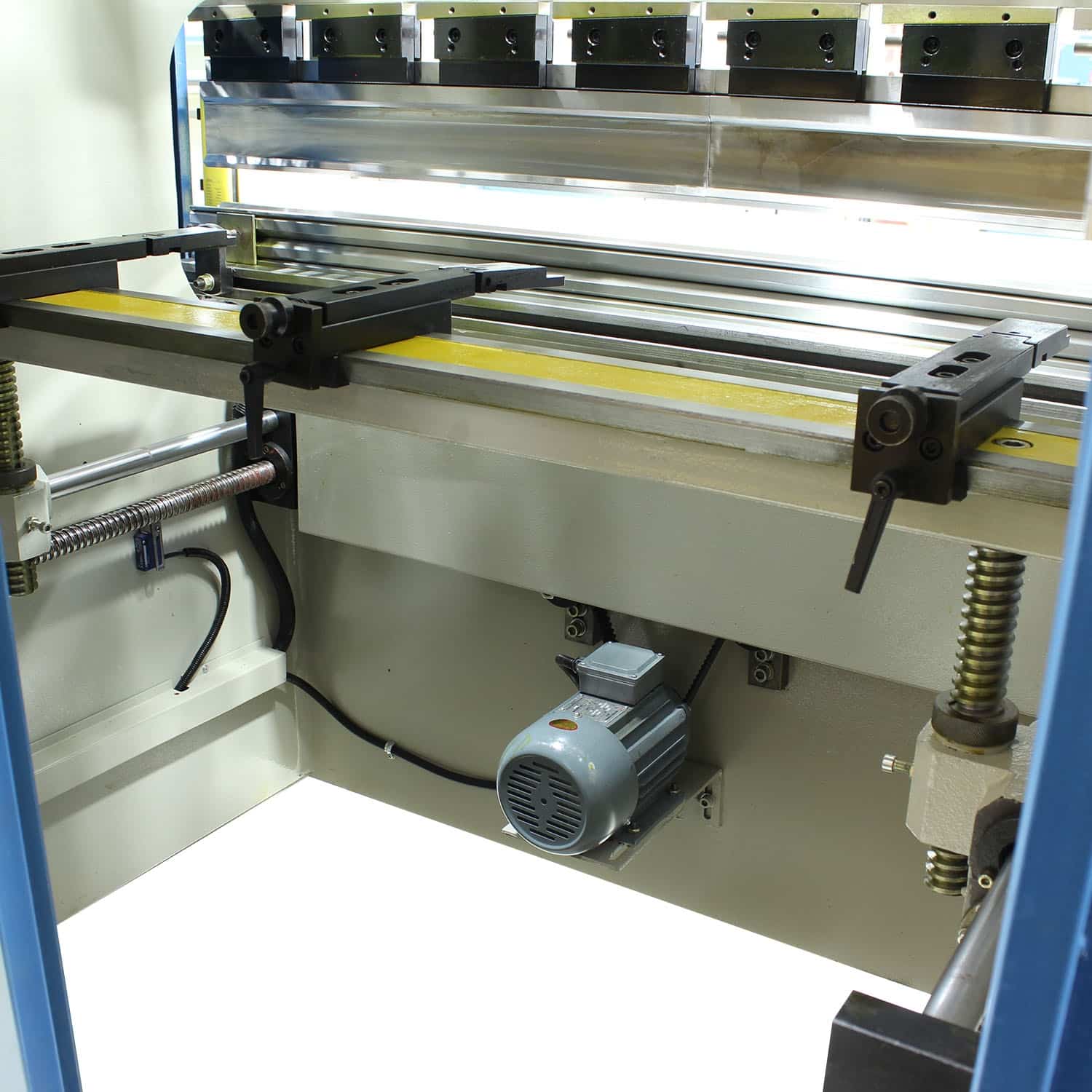

| Back Gauge Motor |
1/2 hp |
| Bending Speed |
.394″ / sec. |
| Main Motor |
7.5 hp |
| Distance Between Housings |
51.25″ |
| Distance From Table To Ram |
13.325″ |
| Power |
220V / 3-phase |
| Shipping Weight |
5050lbs |
| Shipping Dimensions (Inches) |
91x56x87 |
* specifications subject to change without notice.

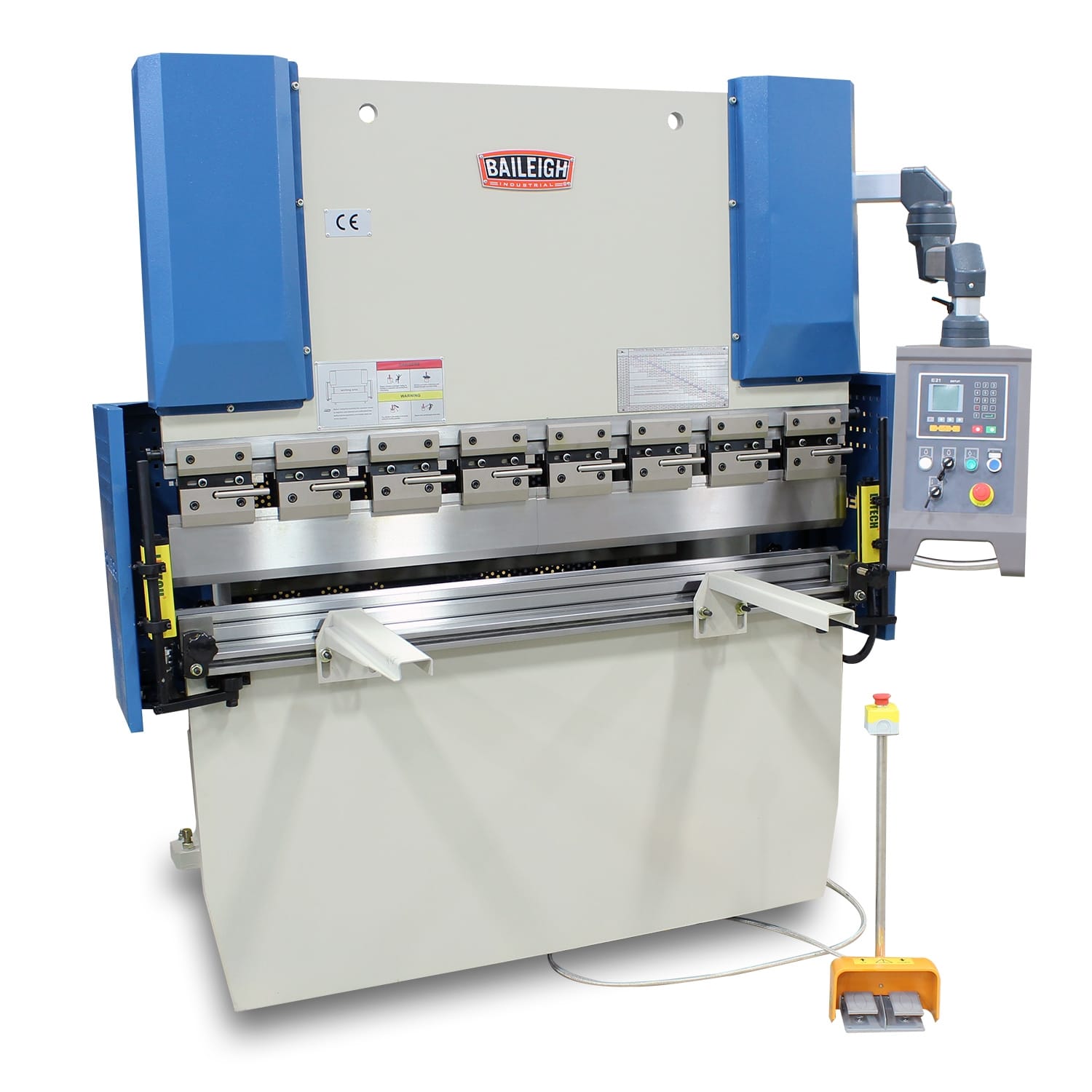

Need high production in a limited space? This CNC hydraulic press brake offers programmable controls, top-quality components, and heavy steel construction for an unbeatable price.
- BP-3305CNC delivers 33 tons of pressure across its 63” table.
- Runs on 220-volt 3-phase power.

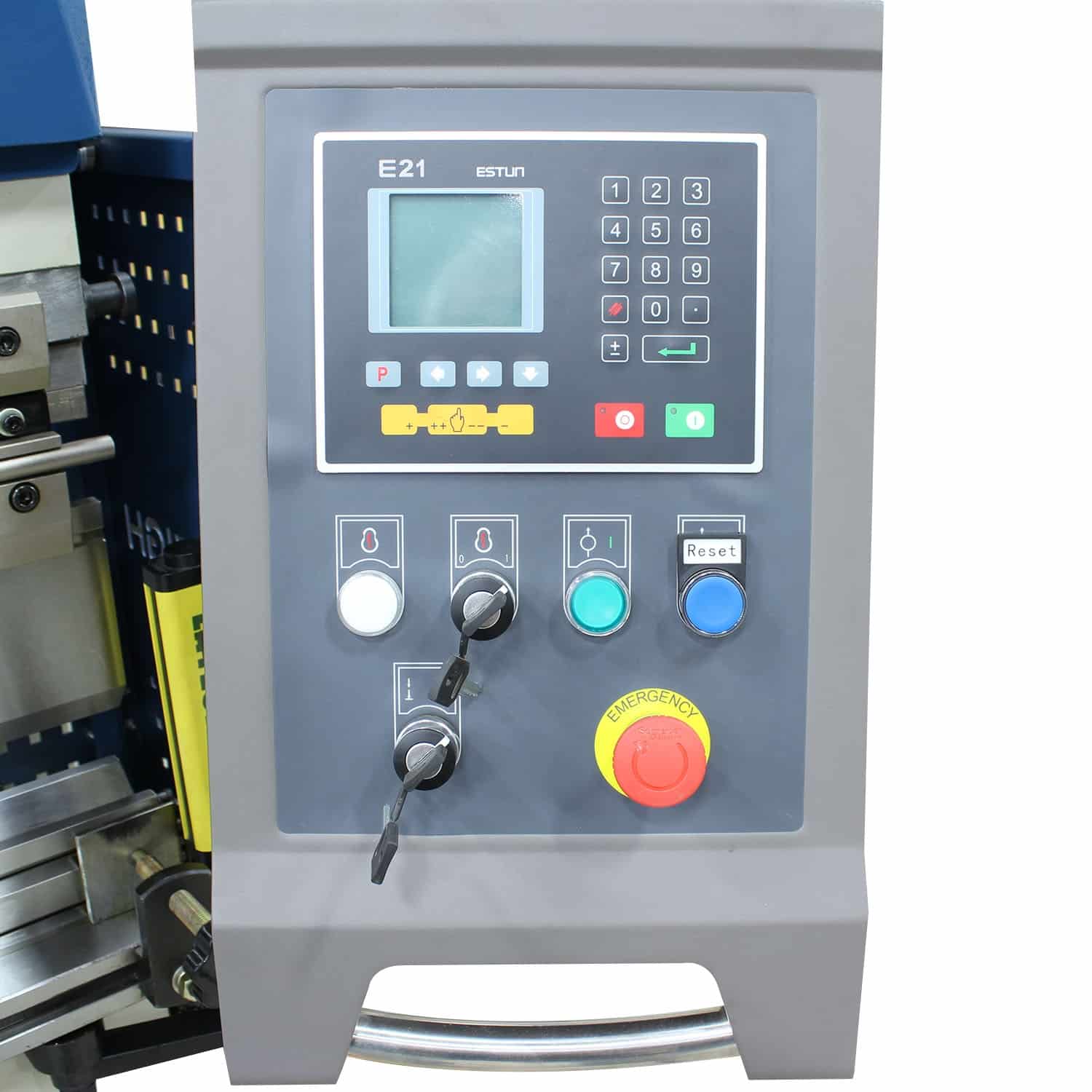

- Easy-to-use programmable 2-axis Estun E21 controller is integrated right from the factory.
- Internal memory can hold 40 programs, each with its own unique number for easy identification.
- Controller will keep a piece count for large production runs.
- Made with NOK, Siemens, and Omron components.
- Foot pedal lets you control all bending functions, whether on full auto or jog mode.
- Fully welded steel plate frame minimizes deflection and maintains rigidity.
- Gooseneck punch and a 4 sided multi-V bottom die come standard.

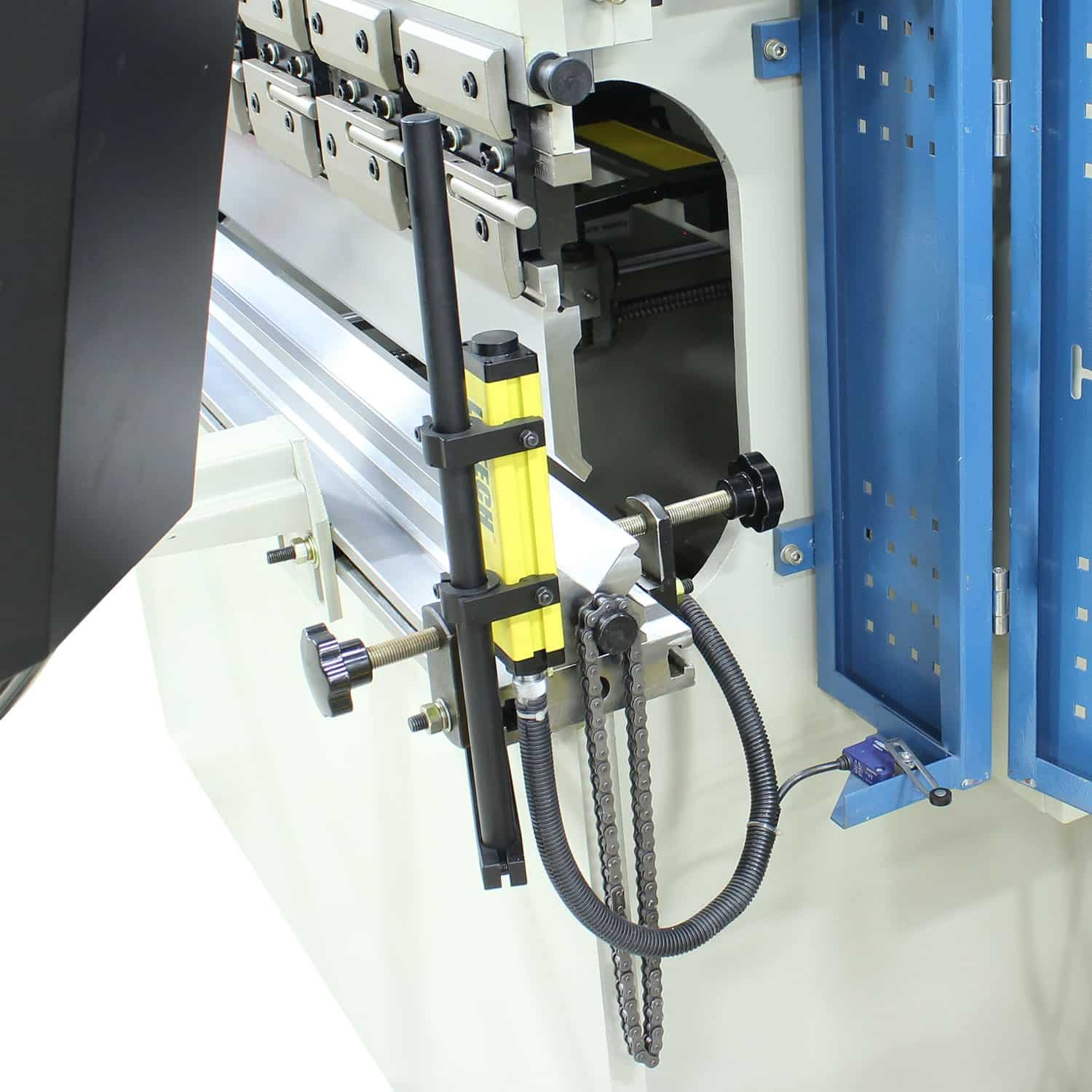

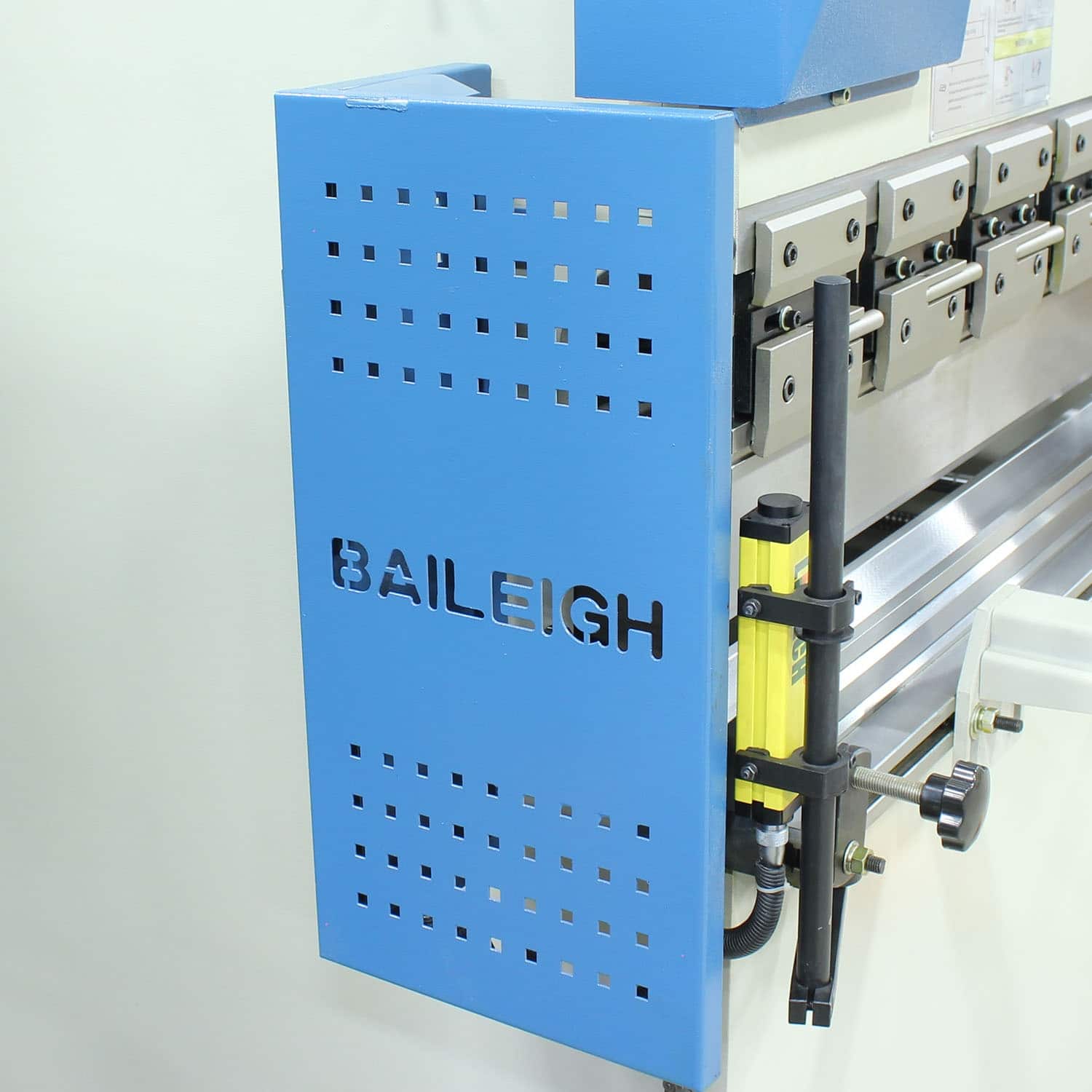

- Integrated safety light curtains help prevent accidents.
- We keep parts in stock at our Wisconsin headquarters so we can ship them to you quickly.
- Covered by a 1-year parts warranty.
- Includes lifetime technical support by phone from a team of customer service reps with hands-on industrial experience.
