Specifications
| Stock Number | BA9-1020695 |
|---|---|

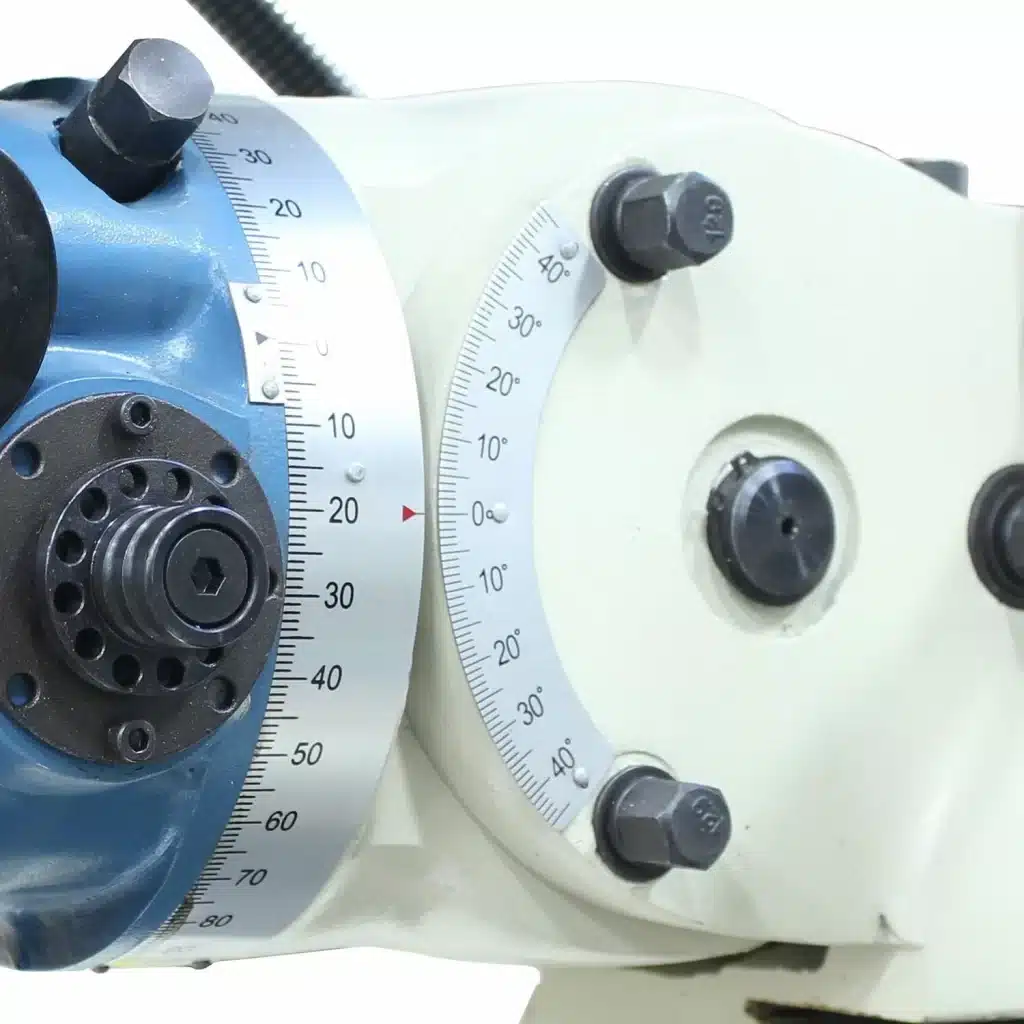

| Head Movement (Deg.) | 45° (F&R) 90° (R&L) |
| Model Number | VM-942E-1 |
| Number of Spindle Speeds | 8 |
| Weight (Lbs.) | 2100 |

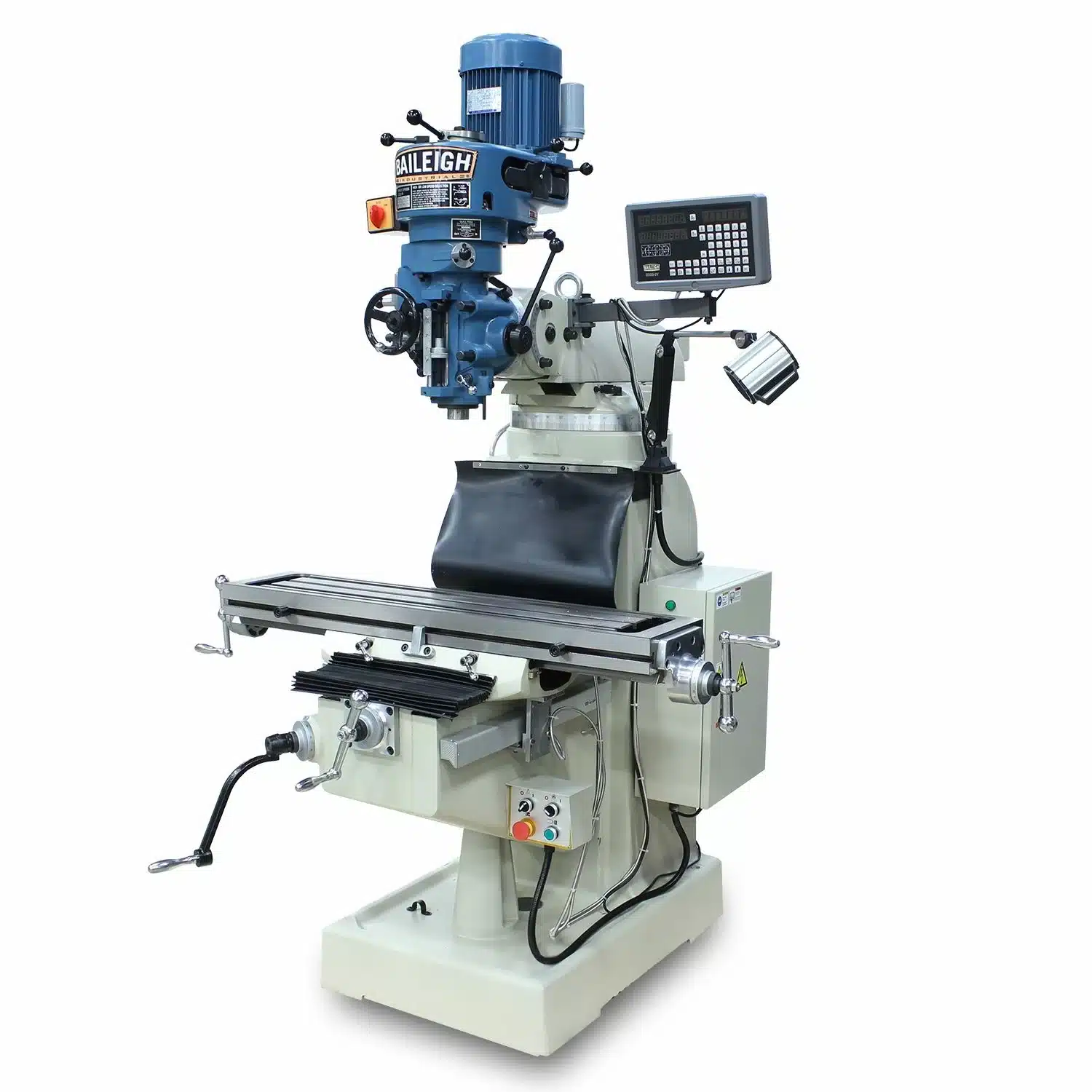

Baileigh VM-942E-1 Vertical Knee Mill
$15,995.00 CAD Funds
Choose an option below:
The Baileigh VM-942E-1 Vertical Knee Mill is a robust milling machine equipped with a powerful 3 HP motor running on 220V single-phase power. It features 8 adjustable spindle speeds ranging from 60 to 2760 rpm, an R8 spindle taper for easy tooling, and a two-axis digital readout. Additional features include a coolant system, dovetail slideways, way covers, and a halogen work light. The machine weighs 2100 lbs and is suitable for various machining applications.
Baileigh Industrial has a line of vertical milling machines to meet any shops requirements, whether it is price, size, or power. The VM-942E-1 vertical milling machine fits into the price category, but that does not mean that it doesn’t have features to back it up and make it a great value.
The VM-942 is an 8 speed milling machine that allows speed adjustments from 60 to 2760 rpm. Being able to fine tune the speed of the quill is important in prolonging tooling life and saving money. Speaking of the quill or spindle Baileigh Industrial has specified a R8 spindle taper for the VM-942E-1. The R8 taper is the most common taper in the industry making tooling easy to source.

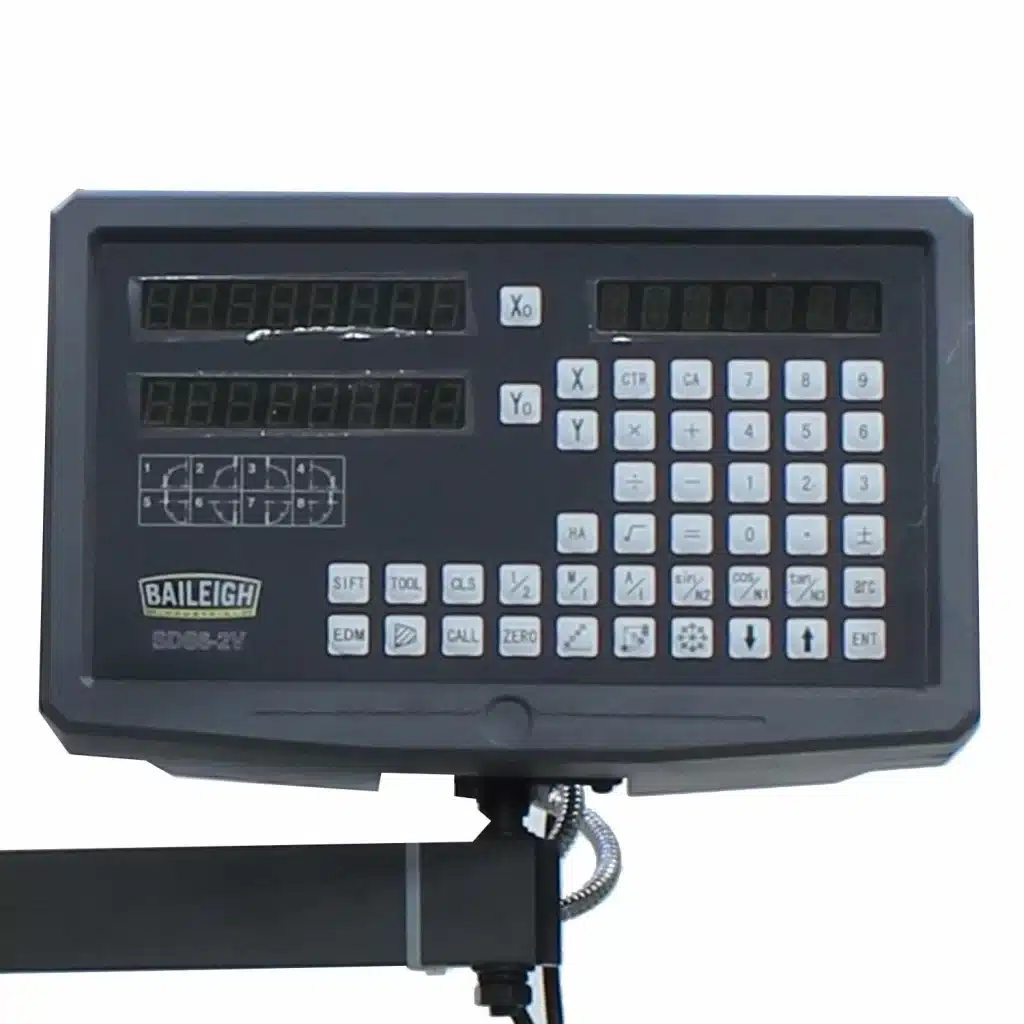

The VM-942E-1 has a powerful 3 hp motor that runs on 220 volt single phase power and features a two axis digital read out. Other standard features of the VM-942 milling machine include a, coolant system dovetail slide ways, way covers, and halogen wok light.
Shipping Details
| Weight | 2100 lbs |
|---|---|
| Dimensions | 70 × 65 × 95 in |
| Estimated Delivery | Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing. |
| F.O.B. Details | ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON) |
| Shipping Method | LTL Freight |
| Unloading Details | This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity. |
| Product Type | Milling Machines |
Photos
