Specifications
| Stock Number | BA9-1016624 |
|---|---|
| Center Distance (In.) | 60″ |
| Input Power | 220V / 3-phase |
| Lead Screw Diameter | 1.125 |
| Leadscrew Thread Pitch | 4 T.P.I. |
| Longitudinal Feed Imp Qty Type | 122 / .0015″-.0913″ / rev. |

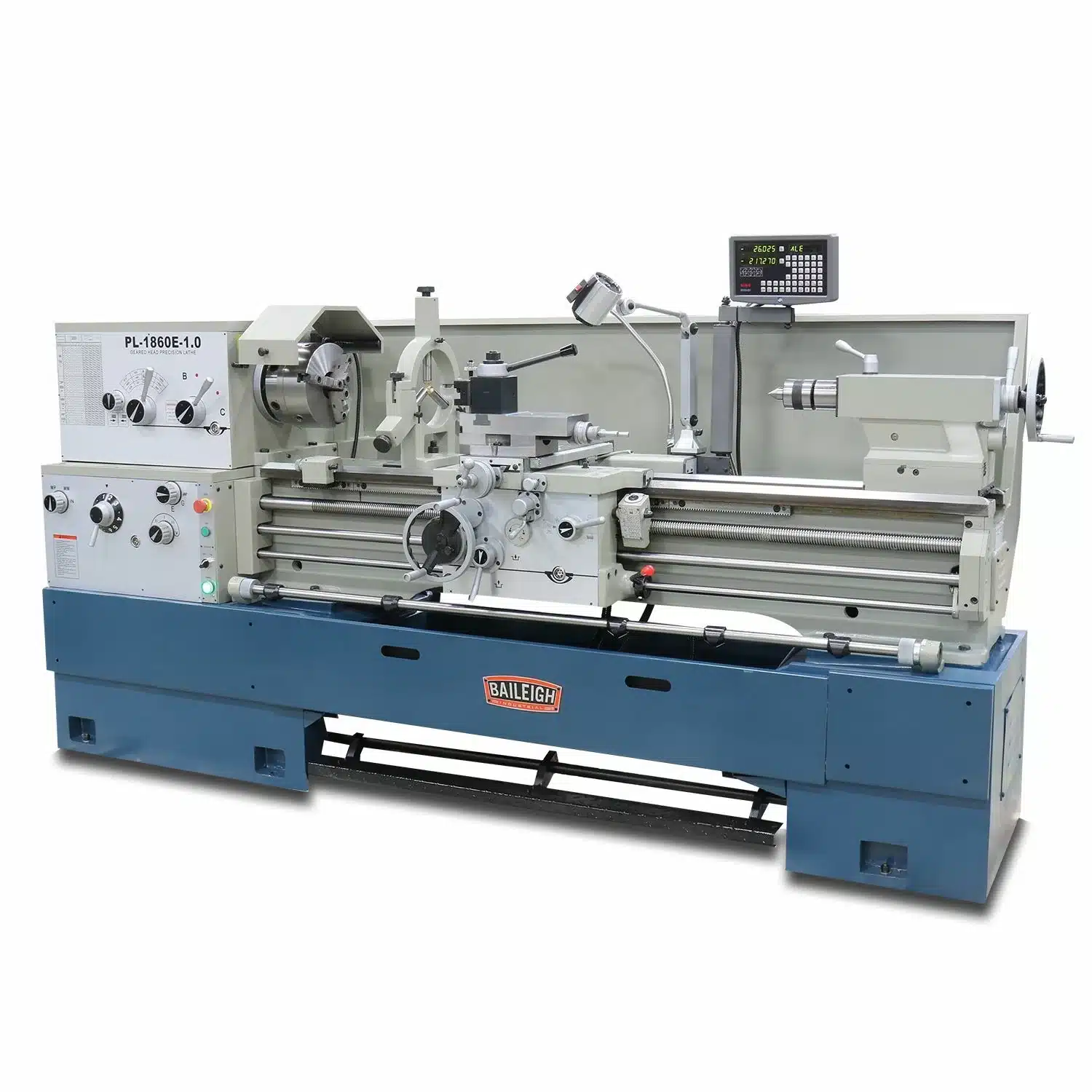

| Model Number | PL-1860E-1.0 |
| Modular Pitch Threads Range | 21 / .25 to 10 M.P |
| Motor (HP) | 7.5 hp |
| Nose Radius (In.) | D1-8 |
| Number of Spindle Speeds | 25-1800 rpm |
| Quill Taper | MT7 |
| Shipping Dimensions (L x W x H) (In.) | 116x45x66 |
| Spindle Bore (In.) | 3.125″ |
| Spindle Taper with Sleeve | MT5 |
| Swing Over Bed (In.) | 18″ |
| Swing Over Cross Slide (In.) | 10-3/4″ |
| Swing Through Gap (In.) | 27.5″ |

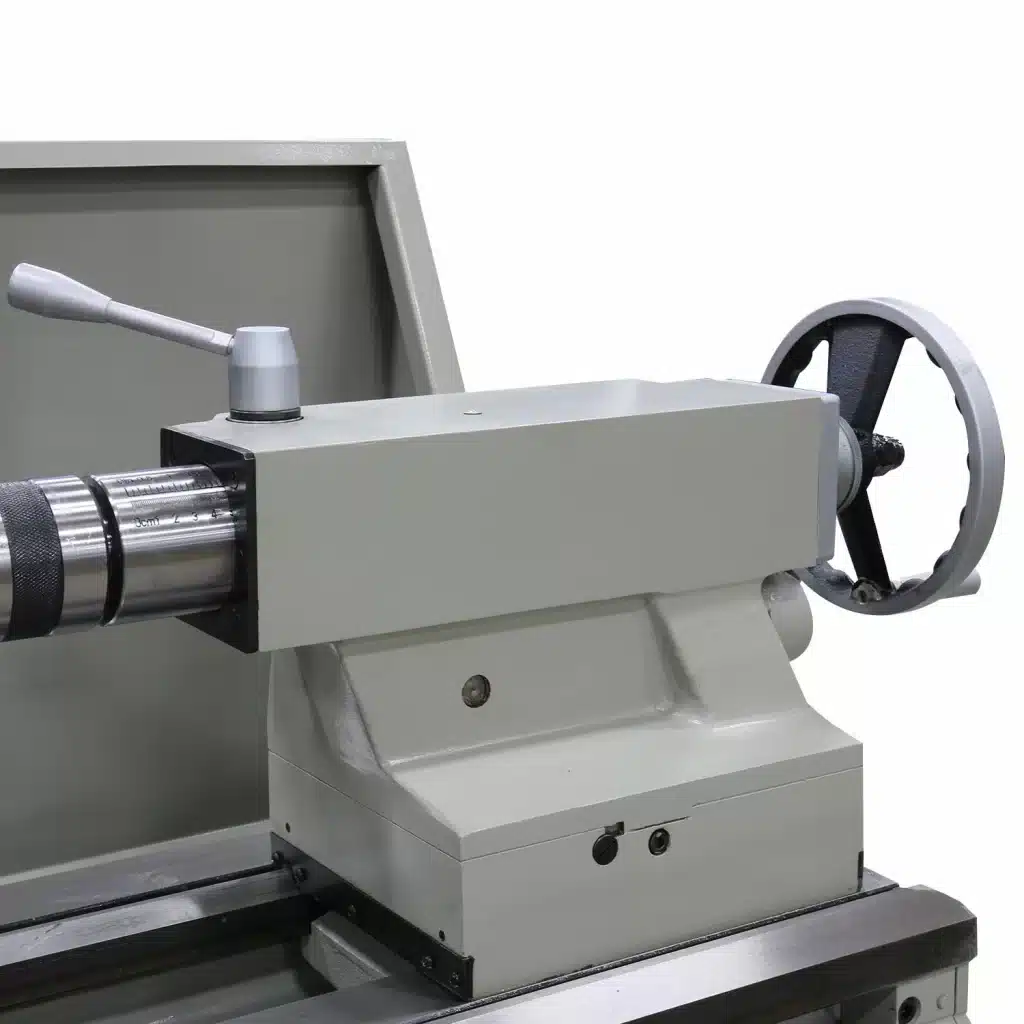

| Tailstock Spindle Travel (In.) | 6″ |
| Weight (Lbs.) | 5650 |
| Width of Bed (In.) | 13-1/8″ |
| Compound Rest Travel | 5-1/8″ |
| Cross Slide Travel | 10-1/2″ |
| Threads Diametrical Quality Type (D.P.) | 45 / 3-1/2 to 96 D.P |
| Threads Imperial Quality Type (T.P.I.) | 61 / 1-5/8 to 72 T.P.I |
