Specifications
| Stock Number | BA9-1006057 |
|---|---|
| Center Height | 6.5 |
| Compound Rest Travel | 2.68 |
| Compound Rest Width | 3 |
| Cross Slide Travel (In.) | 6.29 |
| Cutting Tool Max Section | .625″ x .625″ |
| Distance Between Centers (In.) | 40″ |
| Input Power | 220V 1-Phase |
| Lead Screw Diameter | 0.875 |
| Leadscrew Thread Pitch | 8 T.P.I. |
| Longitudinal Feeds Imperial Qty Speed | 32 / .0020″ – .5480″ / rev. |
| Longitudinal Feeds Metric Qty Speed | 32 / .052 – 13.92 mm / rev. |

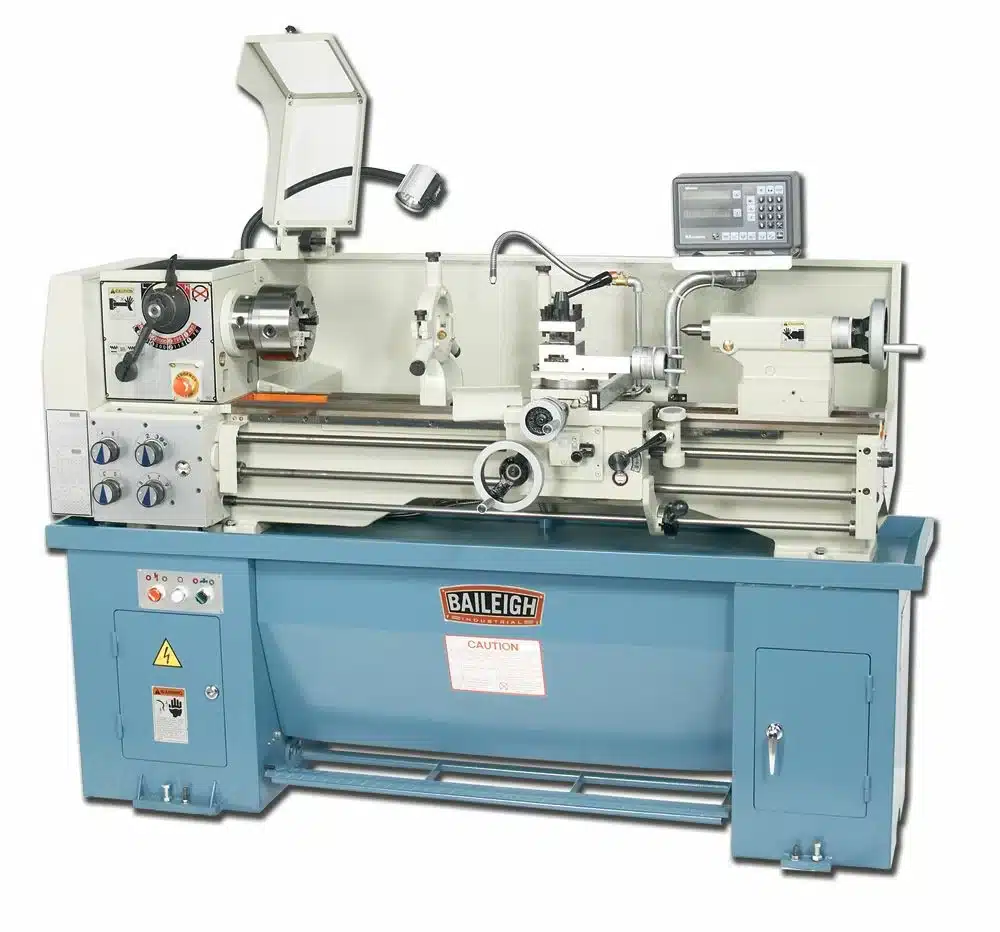

| Model Number | PL-1340 |
| Modular Pitch Threads Range | 21 / .2–3 M.P. |
| Quill Taper | Morse #5 |
| Shipping Dimensions (L x W x H) (In.) | 76x40x62 |
| Spindle Bore (In.) | 1.5 |
| Spindle Taper with Sleeve | Morse #3 |
| Swing Over Bed (In.) | 13″ |
| Swing Over Cross Slide (In.) | 7.79″ |
| Swing Through Gap (In.) | 18.75″ |
| Table Length (In.) | 5.125″ |
| Tailstock Spindle Travel (In.) | 4.5″ |
| Taper in Tailstock Spindle | 1.65″ |
| Weight (Lbs.) | 1630 |
| Width of Bed (In.) | 7.375″ |
| Speed (rpm) | 70 – 2000 rpm |
| Threads Diametrical Quality Type (D.P.) | 32 / 8–120 D.P. |
| Threads Imperial Quality Type (T.P.I.) | 31 / 4–56 T.P.I. |
