Baileigh PL-1236E Metal Lathe

Baileigh PL-1236E Metal Lathe

$10,795.00 CAD Funds

Choose an option below:

Questions about this Product? We are here to help! Call us toll-free today: 1 (833) 399-5395

    Questions? Call us Toll-Free 1-(833) 399-5395

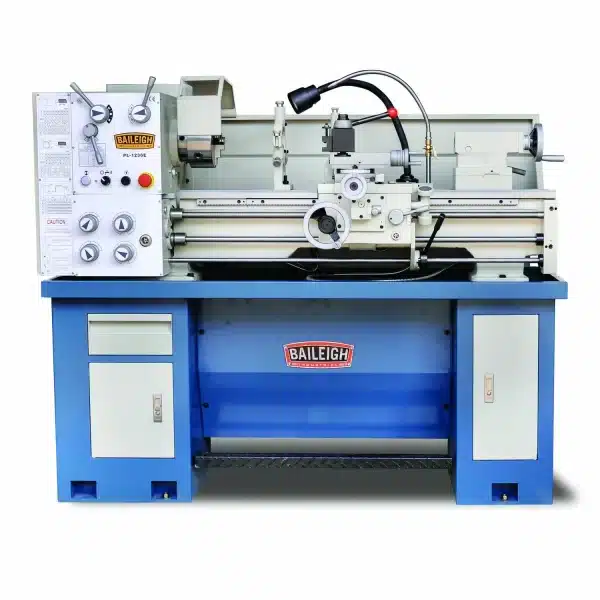

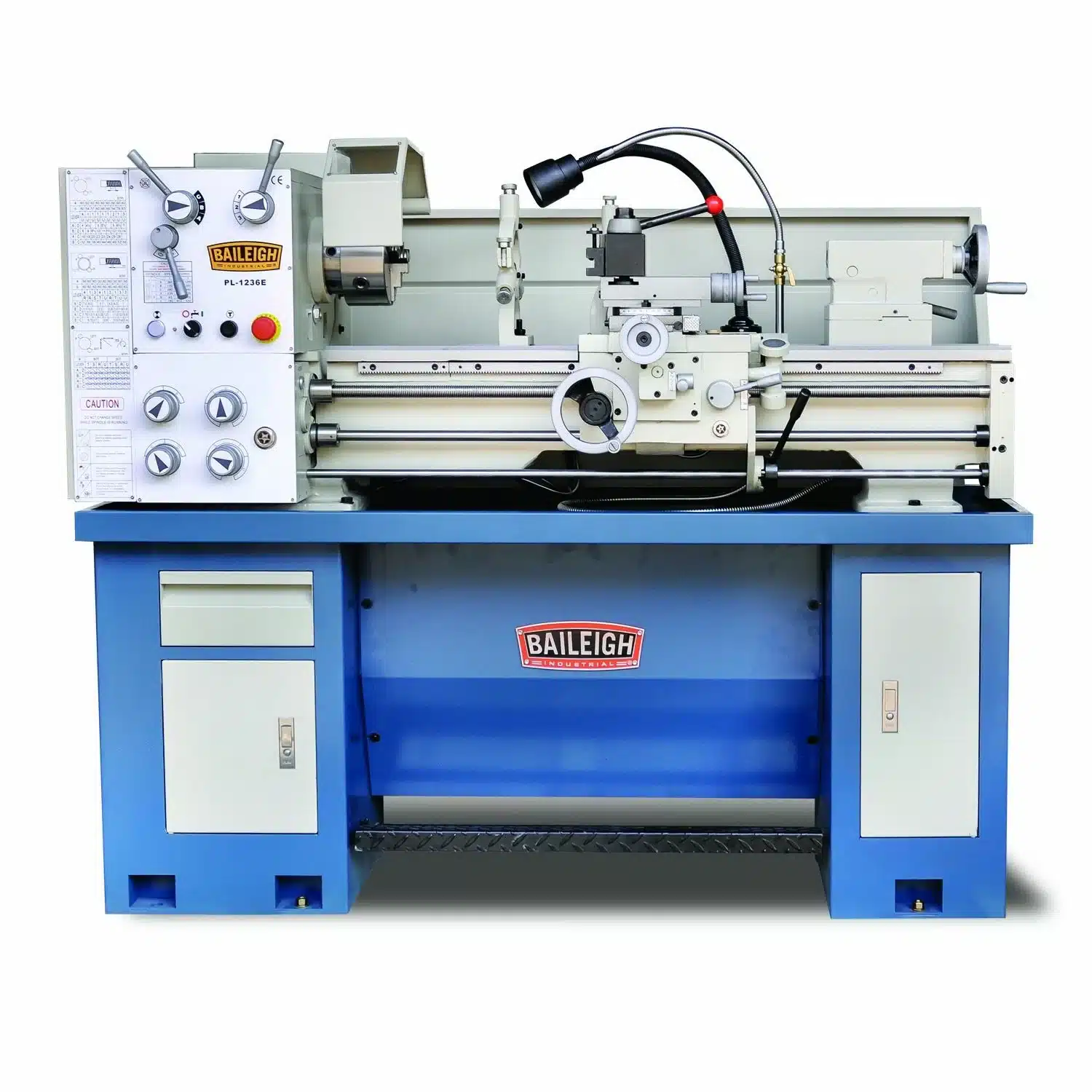

    The Baileigh PL-1236E Metal Lathe is an economical gear-head lathe ideal for schools, hobbyists, and maintenance shops. It features a 36" distance between centers, a 1.5" spindle bore, and a variable speed range from 70 to 1,400 rpm. The lathe operates on 220V single-phase power and comes equipped with a quick-change tool post, 3-jaw and 4-jaw chucks, a coolant system, and a foot brake for safety.

    Warranty: 1 YearUPC: 731325462708 SKU: BA9-1016616 Categories: ,

    Specifications

    Stock Number BA9-1016616
    Distance Between Centers (In.) 36″
    Input Power 220V / 1-phase
    Leadscrew Thread Pitch 8 T.P.I.
    Length of Gap (In.) 6″
    Model Number PL-1236E-1.0
    Nose Radius (In.) D1-4″
    Quick Change Collet Size (Mm.) .625″ x .625″

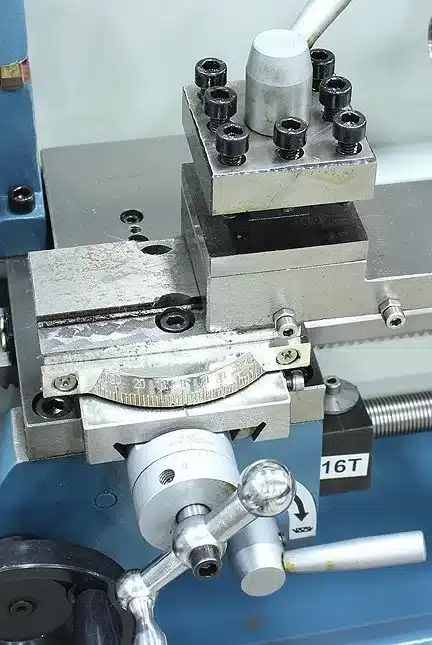

    Range of Cross Feeds (IPR) 0.007″ – 0.0187″/rev
    Range of Inch Threads (TPI) 4 – 56 T.P.I.
    Range of Longitudinal Feeds (IPR) 0.002″ – 0.0548″/rev
    Range of Metric Threads 0.4 – 7 mm
    Shipping Dimensions (L x W x H) (In.) 69x44x64
    Spindle Bore (In.) 1.50″
    Spindle Diameter (In.) 1.250″
    Spindle Taper Morse #3
    Spindle Travel (In.) 4″
    Weight (Lbs.) 1395

    This economical gear-head Metal Lathe is a perfect choice for schools, hobbyists, and maintenance shops. The PL-1236E includes a quick-change tool post and 2 chucks.

    Covered by a 1-year parts warranty. You can count on lifetime technical support by phone from our team of reps with first-hand metalworking experience.

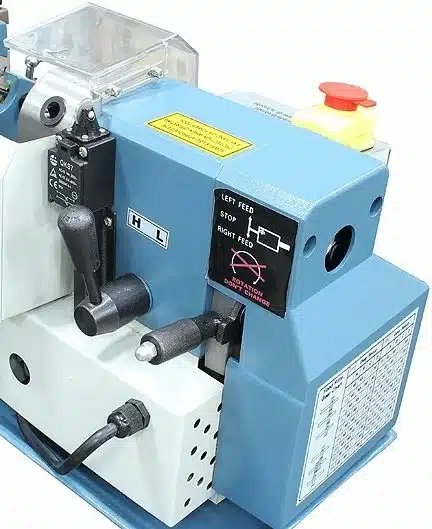

    • Integrated gear system allows for taping, turning, and polishing
    • All ways are ground and hardened to ensure long life
    • Runs on 220-volt single-phase power and 70 to 1,400 rpm variable speed
    • Capable of standard and metric threading

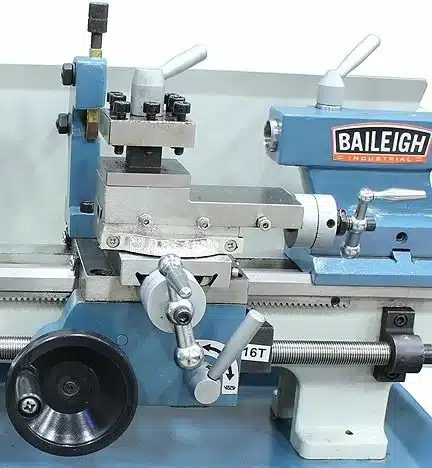

    • Quick-change tool post helps you save time
    • 3-jaw and 4-jaw chucks can hold both square and rounded materials

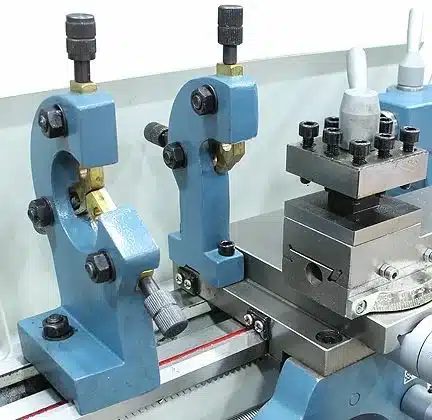

    • Steady rest and follow rest brace the shaft and prevent wobbling to ensure high accuracy
    • Facing plate lets you shape materials that are large but not long – Bolt your metal to the plate to keep it square and symmetrical
    • Coolant system consists of a reservoir and pump in the base plus a hose you can point as needed
    • Foot brake helps keep your shop safe and Halogen work light comes standard

    Shipping Details

    Weight 1395 lbs
    Dimensions 69 × 44 × 64 in
    Estimated Delivery

    Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing.
    F.O.B. Details

    ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON)
    Shipping Method

    LTL Freight
    Unloading Details

    This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity.
    Product Type

    Metal Lathes
