$5,395.00 CAD Funds
Choose an option below:

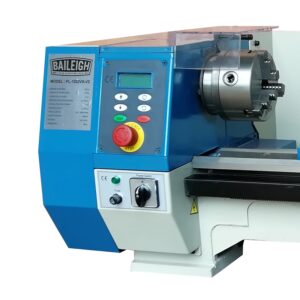

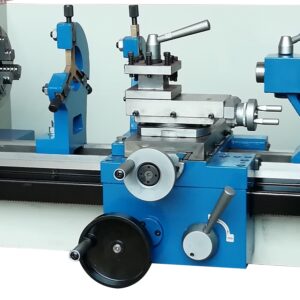

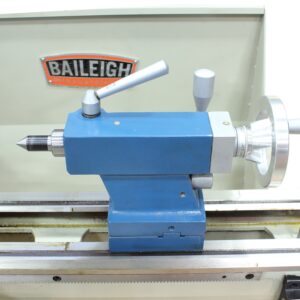

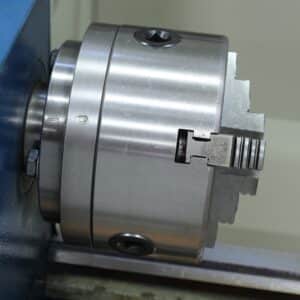

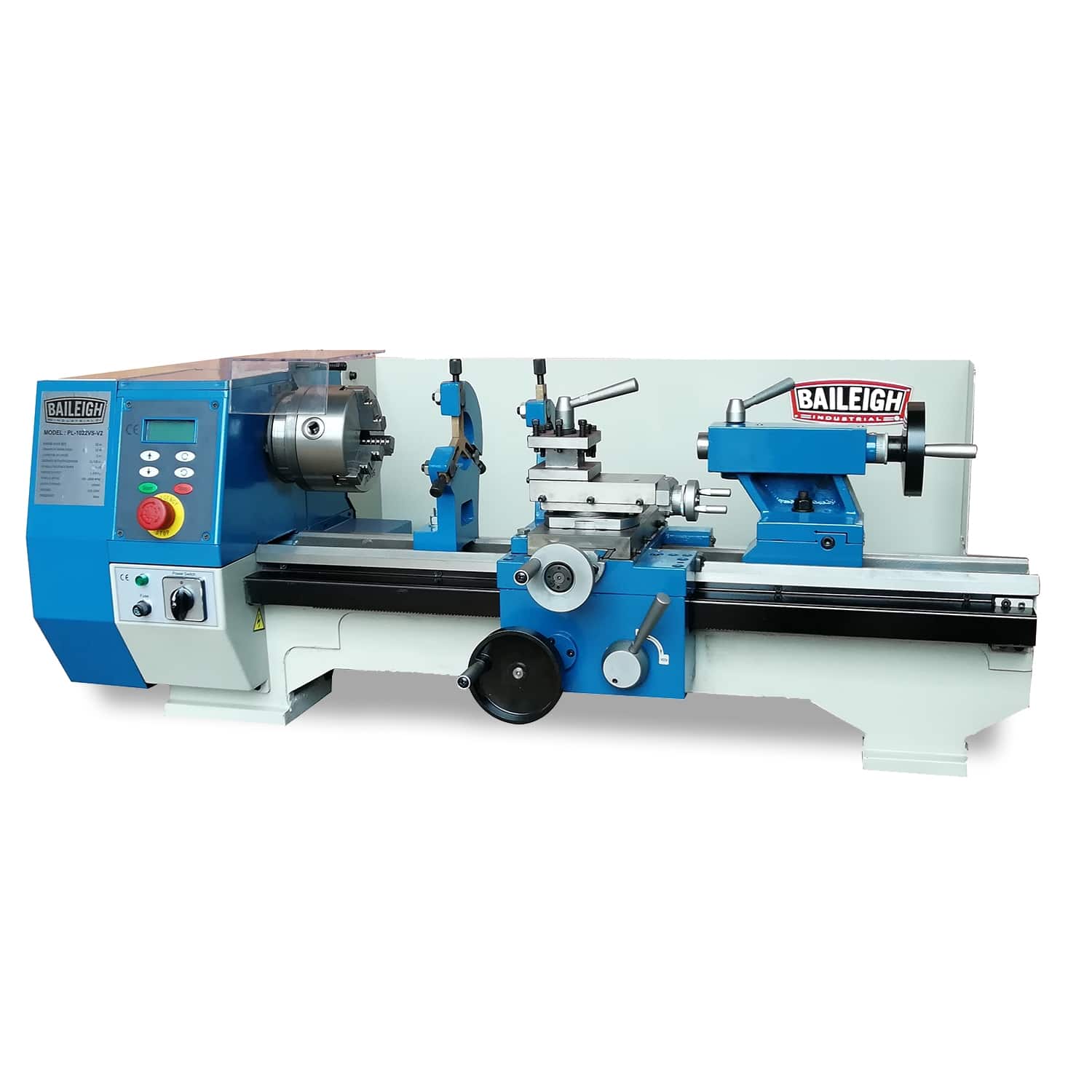

The Baileigh PL-1022VS-V2 Bench Lathe is a versatile, precision machine suitable for small shops and hobbyists. It features a 10" swing over bed, a variable speed range from 50 to 2,200 rpm, and a 1 hp motor running on 110V power. The lathe includes a digital readout (DRO), a 4-way tool post, and comes equipped with a 5" 3-jaw chuck, tailstock, and chip tray.
| Item Number | PL-1022VS-V2 |
|---|---|
| Spindle Speeds | 50-2000 rpm (Variable) |
| Chuck Diameter | 17215 |
| Tool Slide Travel | 1.89″ |
| Spindle Accuracy | .001″ |
| Range Of Metric Threads | 0.4 – 3.4 mm |
| Spindle Bore | 0.787″ |
| Range Of Inch Threads | 8 – 56 T,P.I. |
| Motor | 1 hp |
| Taper Of Tailstock Quill | MT 2 |
| Swing Over Bed | 9.75″ |
| Power | 110V |
| Shipping Weight | 405lbs |
| Shipping Dimensions (Inches) | 60x44x28 |
* specifications subject to change without notice.

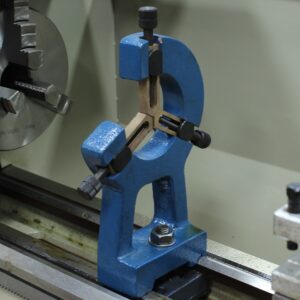

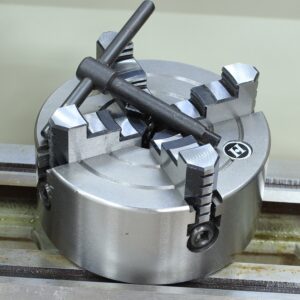

Built from quality components, like ground and hardened ways, this variable-speed benchtop lathe will last for many years. It comes standard with a DRO, 2 chucks, and a steady rest.
| Weight | 405 lbs |
|---|---|
| Dimensions | 60 × 44 × 28 in |
| Estimated Delivery | Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing. |
| F.O.B. Details | ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON) |
| Shipping Method | LTL Freight |
| Unloading Details | This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity. |
| Product Type | Metal Lathes |
