Baileigh EW-45 - 45" Professional English Wheel

Baileigh EW-45 – 45″ Professional English Wheel

$4,614.75 CAD Funds

Choose an option below:

Questions about this Product? We are here to help! Call us toll-free today: 1 (833) 399-5395

    Questions? Call us Toll-Free 1-(833) 399-5395

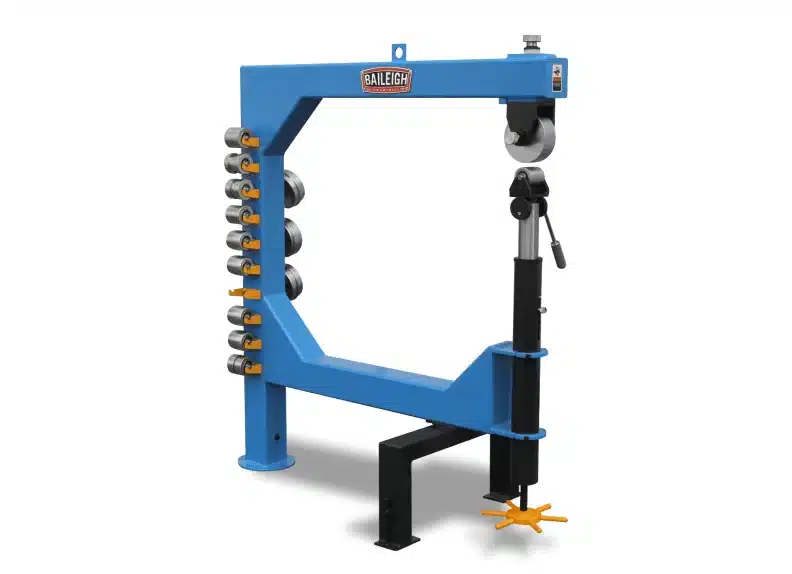

    The Baileigh EW-45 Professional English Wheel is designed for shaping and smoothing sheet metal, featuring a 45” throat depth and a capacity for 16-gauge mild steel. It includes four upper wheels, 10 hardened lower anvils, and a swivel head for versatile positioning. The machine is built with a fully welded box tubing framework for stability and includes a quick-release cam and a kick tensioner for easy adjustments.

    Warranty: 1 YearUPC: 19907201168 SKU: BA9-1232705 Categories: , ,

    Specifications

    Stock Number BA9-1232705
    Model Number EW-45
    Aluminum Capacity (Gauge) 14.0000
    Head Style Swivel
    Lower Die Radius ⅛”, ½”, and ¾” edge radii. 6” crown radius. 2 flat rolls. 5/16” x ¼” step roll. 1½ ” and ⅝” round bead rolls.
    Mild Steel Capacity (Gauge) 16.0000
    Shipping Weight (Lbs.) 555
    Throat Depth (In.) 45
    Top Roll Diameter 6
    • 16 gauge mild steel capacity
    • 45” throat depth can handle almost any project
    • Comes with 4 upper wheels (6” x 2.75”)
    • 10 hardened bottom anvils
    • All upper wheels and lower anvils use sealed bearings
    • Swivel head lets you either push material directly into the throat or at a 90° to it
    • Quick-release cam allows you to release the panel without changing tension

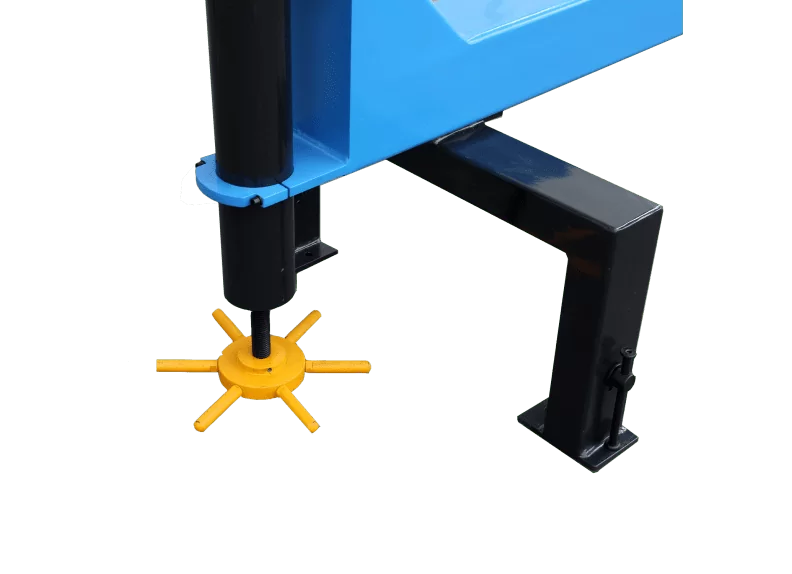

    • Adjust the tension via the kick tensioner, made of real rubber
    • Fully welded 4.75” x 4.75” x .250” box tubing framework prevents flex when rolling at full capacity

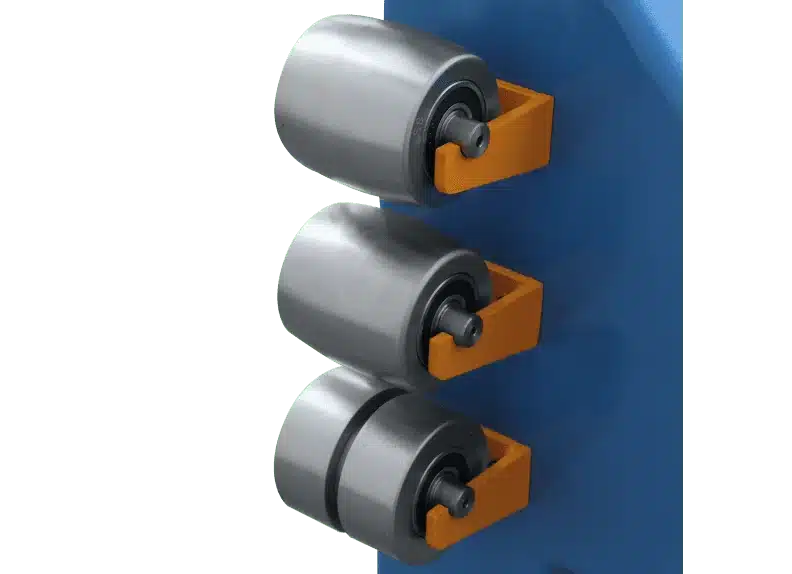

    • Tooling holder on the side of the machine gives you a convenient place to put your rolls

    Shipping Details

    Weight 2000 lbs
    Dimensions 60 × 48 × 94 in
    Estimated Delivery

    Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing.
    F.O.B. Details

    ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON)
    Shipping Method

    LTL Freight
    Unloading Details

    This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity.
    Product Type

    Forming and Shaping
