Baileigh BR-12E-10 Heavy Duty Bead Rolling Machine

Baileigh BR-12E-10 Heavy Duty Bead Rolling Machine

$10,284.75 CAD Funds

Choose an option below:

Questions about this Product? We are here to help! Call us toll-free today: 1 (833) 399-5395

    Questions? Call us Toll-Free 1-(833) 399-5395

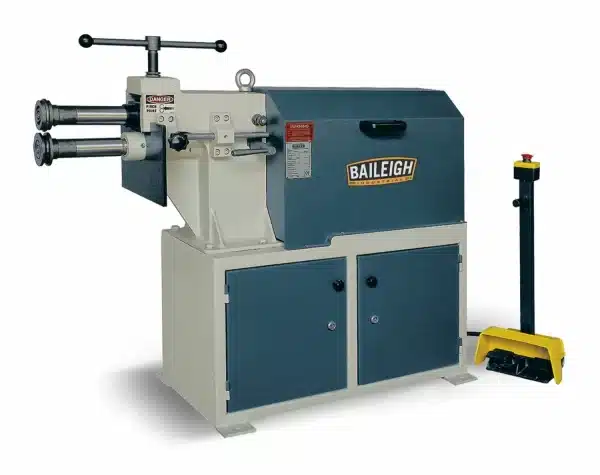

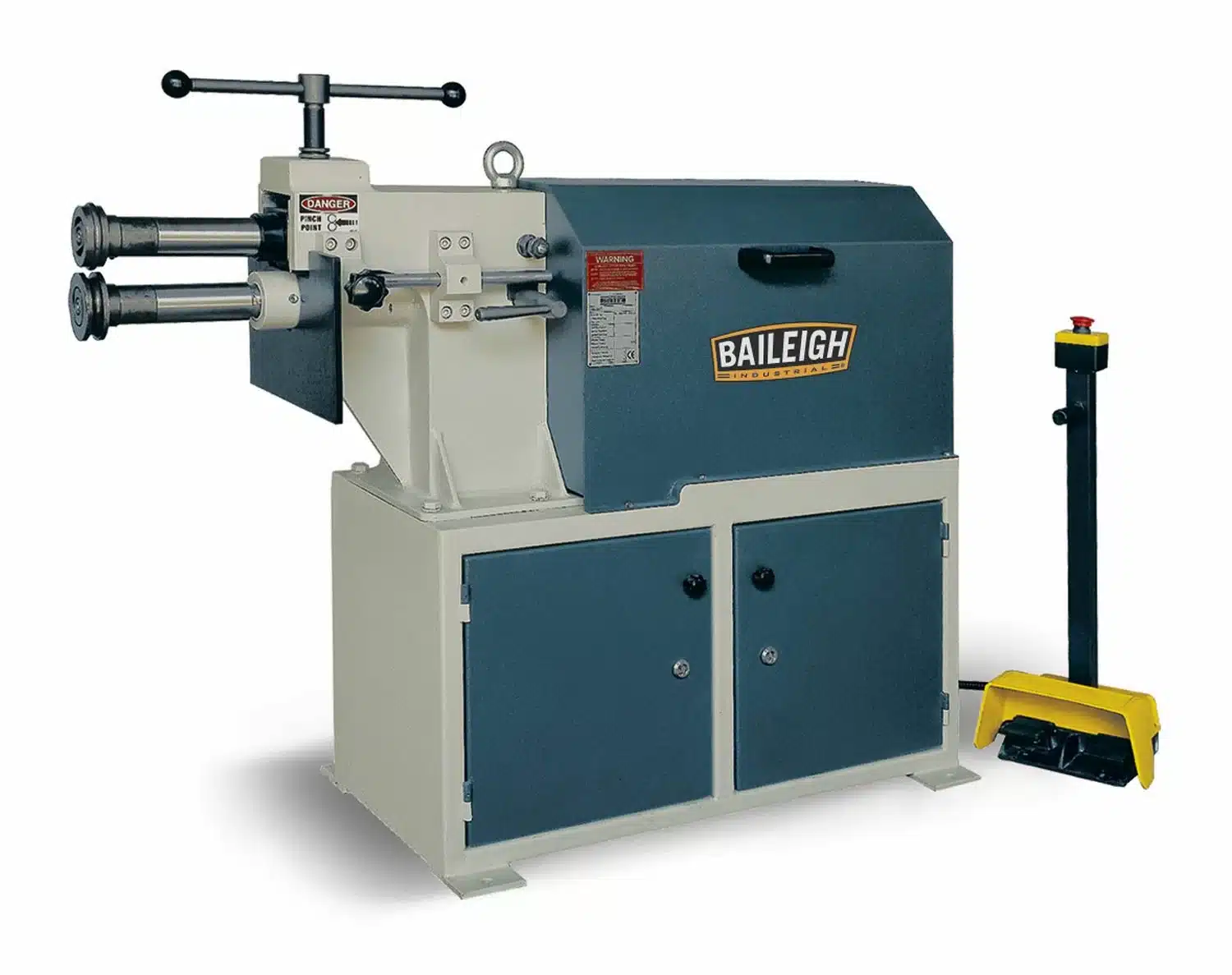

    The Baileigh BR-12E-10 Heavy Duty Bead Rolling Machine is designed for precise metal forming with a 12-gauge mild steel capacity and a 10” throat depth. It operates on a 220V single-phase power and features a 2 hp motor. The machine comes with a foot pedal for hands-free operation, forward and reverse pedals for intricate patterns, and four tooling profiles. It also includes a movable steel plate depth stop and a storage cabinet built into the base.

    Warranty: 1 YearUPC: 19907511151 SKU: RAMS-2019-8 Categories: , , Tag:

    Specifications

    Stock Number BA9-1012430
    Accessories Included Accessories
    Adjustable Depth Stop Included
    Input Power 220 Volt Single Phase
    Max Thickness Mild Steel (Gauge) 12.0000
    Model Number BR-12E-10
    Roll Diameter 3.77
    Roll Holder No
    Shipping Dimensions (L x W x H) (In.) 60x48x53
    Throat Depth (In.) 11″
    Weight (Lbs.) 820
    • 2 hp motor runs on 220-volt single-phase power and a 10” throat depth is suitable for working on the edges of material
    • Industrial-grade gearbox comes with a brake to maintain accuracy and foot pedal controls leave your hands free to guide the material. You only need one operator
    • Forward and reverse pedals help with delicate patterns that you want to go over
    • Movable steel plate depth stop provides a solid surface to guide you and produce straight beads
    • Top handle moves the top shaft vertically so that you can easily open it up and get the material in there

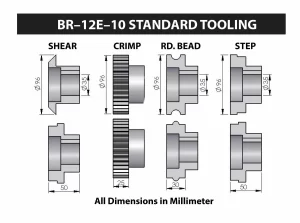

    • Includes 4 tooling profiles: round, shear, step, crimp rolls
    • Cabinet built into the base offers convenient storage for tooling
    • Adjustable depth on the bottom lets you get a custom profile by offsetting your rolls
    • Disengage the black handle to push the shaft back and forth and get your offset
    • Robust, fully welded steel frame ensures many years of accurate, reliable metal forming even at maximum capacity

    Shipping Details

    Weight 820 lbs
    Dimensions 60 × 48 × 53 in
    Estimated Delivery

    Not usually in Stock; however, "Request a Quote" or give us a call and we will find out what the Estimated Delivery will be and let you know.
    F.O.B. Details

    F.O.B. (Rams Sheet Metal). Freight rates are quoted on a case by case basis from , Antioch, IL to your shop address.
    Shipping Method

    LTL Freight
    Unloading Details

    This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity.
    Product Type

    Forming and Shaping

    Photos
