Baileigh BR-16E-36 Bead Roller

Baileigh BR-16E-36 Bead Roller

$10,599.75 CAD Funds

Choose an option below:

Questions about this Product? We are here to help! Call us toll-free today: 1 (833) 399-5395

    Questions? Call us Toll-Free 1-(833) 399-5395

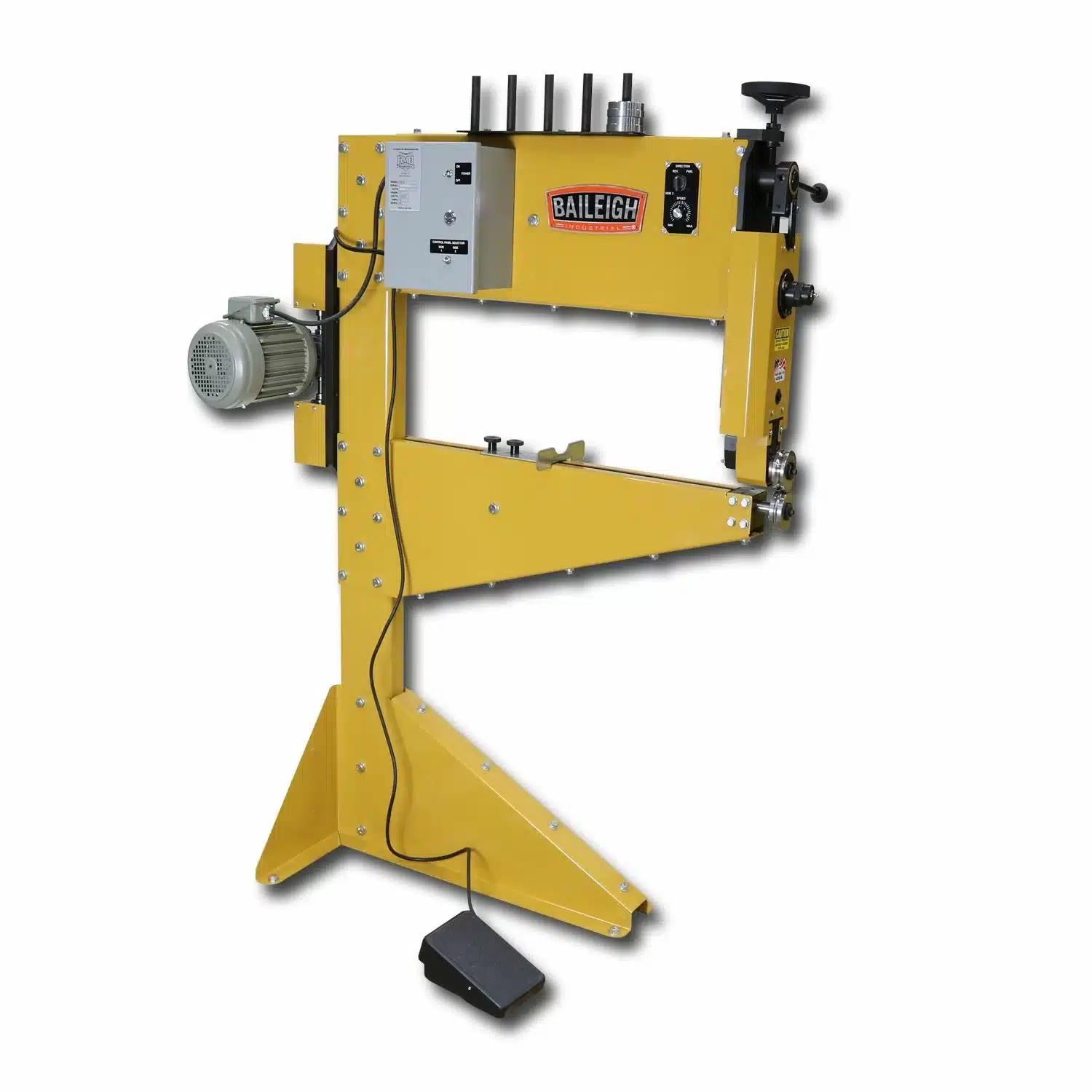

    The Baileigh BR-16E-36 Bead Roller is a versatile tool for metal shaping, featuring a 36” throat depth and a capacity for 16-gauge mild steel. It is powered by a 0.5 hp motor running on 110-volt power and includes a variable-speed foot pedal for precise control. The machine is equipped with both forward and reverse roll capabilities, adjustable forming depth, and a sturdy construction ideal for professional metalworking tasks.

    Warranty: 1 YearUPC: 19907075868 SKU: BA9-BR36 Categories: , , Tag:

    Specifications

    Stock Number BA9-BR36
    Aluminum Capacity (Gauge) 14.0000
    Input Power 110 volt
    Mild Steel Capacity (Gauge) 16.0000
    Model Number BR-16E-36
    Motor (HP) 1/2 HP
    Roll Holder No
    Shipping Dimensions (L x W x H) (In.) 60x44x70
    Throat Depth (In.) 36″
    Weight (Lbs.) 515
    • Made in the USA.
    • 16 gauge mild steel maximum capacity with a 36” throat depth enables you to work on the middle of large panels.
    • Industrial .5 hp motor runs on 110-volt power. Plug it into any household outlet.

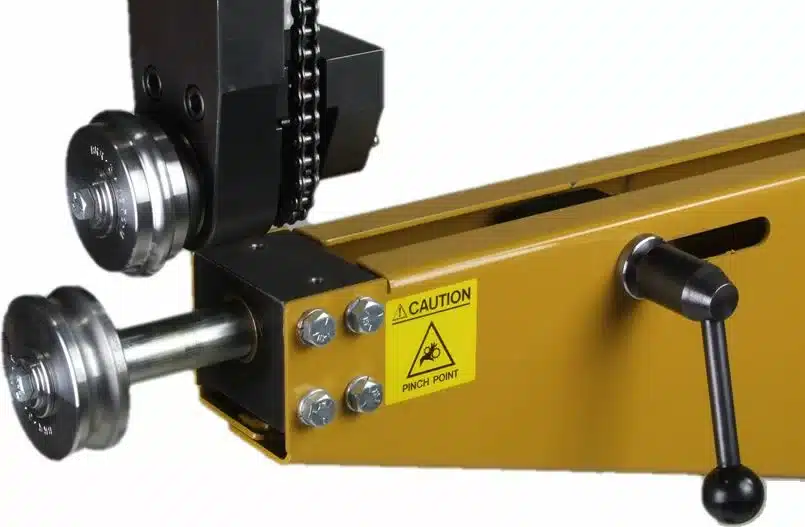

    • Both rolls are driven. Chain drive on the top roll prevents slippage.
    • Variable-speed foot pedal lets you slow down your feed rate for more delicate work.

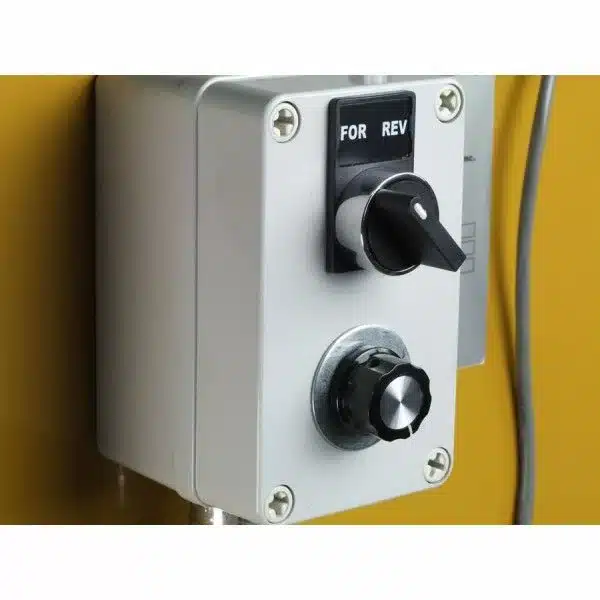

    • You can change the RPM of the rolls in real time by turning the dial on the side or lock the rolls at a constant speed.
    • Rollers can run forward or in reverse, so you can go over a pattern as needed.
    • Left- and right-hand controls are the same on both sides of the machine.

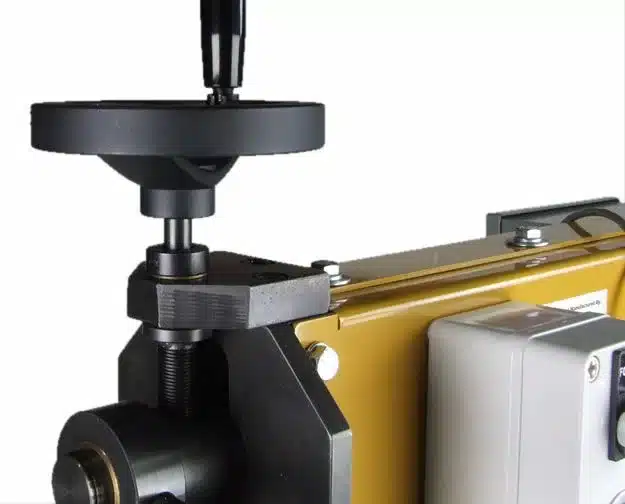

    • Adjust the forming depth by turning a hand wheel just above the working area.
    • You can begin or end a design in the middle of the panel and not worry if the depth is set correctly.

    Shipping Details

    Weight 515 lbs
    Dimensions 60 × 44 × 70 in
    Estimated Delivery

    Not usually in Stock; however, "Request a Quote" or give us a call and we will find out what the Estimated Delivery will be and let you know.
    F.O.B. Details

    F.O.B. (Rams Sheet Metal). Freight rates are quoted on a case by case basis from , Antioch, IL to your shop address.
    Shipping Method

    LTL Freight
    Unloading Details

    This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity.
    Product Type

    Forming and Shaping

    Photos
