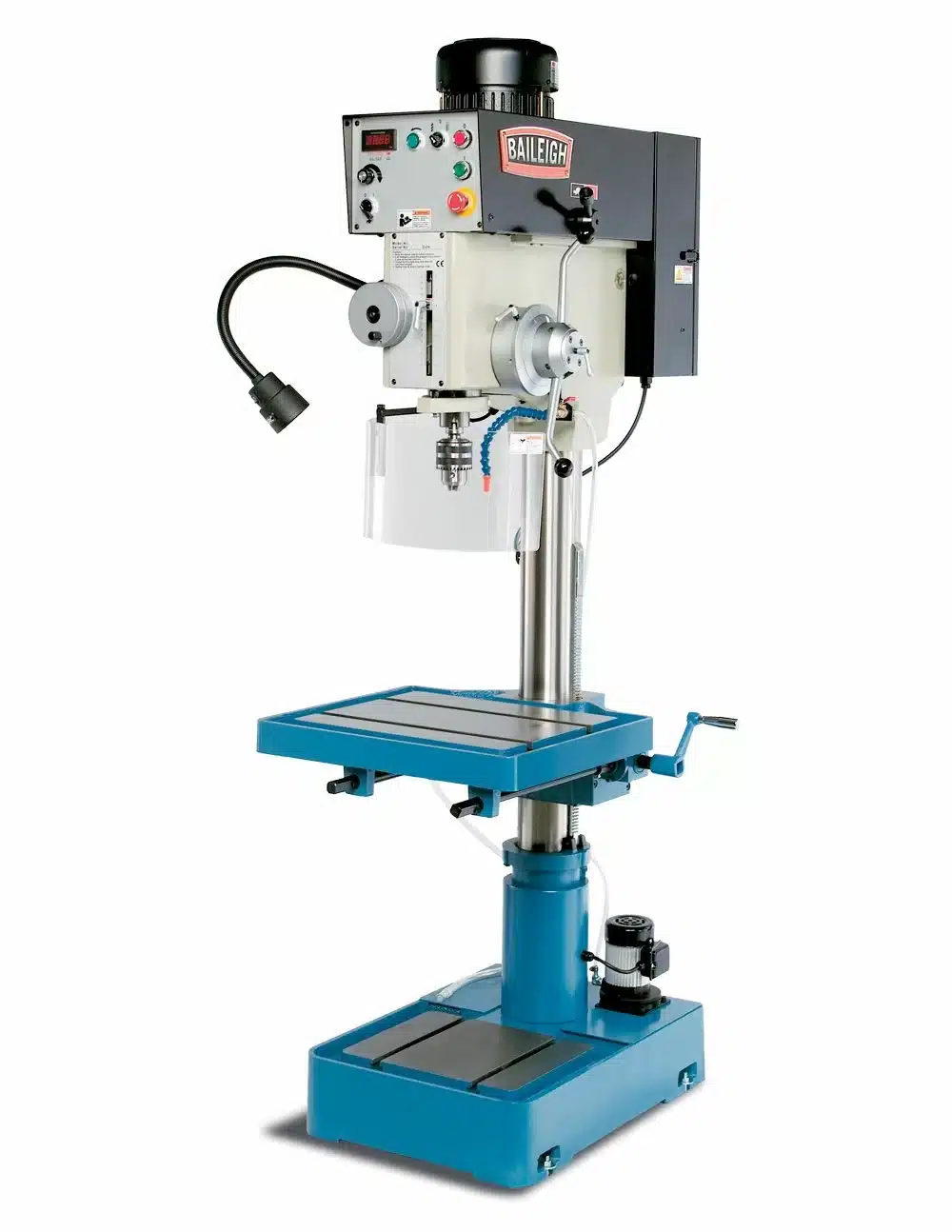

Baileigh DP-1500VS Variable Speed Drill Press

Name: Baileigh DP-1500VS Variable Speed Drill Press - Onix Machinery Sales Ltd.
SKU: BA9-1002923
Price: 9395.00 CAD
Availability: InStock

$9,395.00 CAD Funds

Choose an option below:

The Baileigh DP-1500VS is a powerful variable-speed drill press designed for precision metalworking. It features a 2 hp motor, a speed range from 65 to 2000 rpm, and can handle drilling capacities up to 1.5" in steel and 1.75" in cast iron. It includes an auto-reversing tapping feature, a digital speed readout, a sturdy 4.52” column for accuracy, and a large 22” x 18.5” drill table. Additionally, it has a built-in coolant system and a safety guard for enhanced protection.

Warranty: 1 YearUPC: 731325404845 SKU: BA9-1002923 Categories: Drill Presses, Metalworking, Variable-Speed Drill Presses

Specifications

Stock Number	BA9-1002923
Base Dimensions (In.)	27″ x 19″
Column Diameter (In.)	4.52″
Drilling Capacity Cast Iron (In.)	1.75″
Drilling Capacity Mild Steel (In.)	1.5″
Input Power	220V Single Phase
Model Number	DP-1500VS
Quill Diameter (In.)	2.95″
Quill Feed	.0078″, .004″, .002″ per rev.
Shipping Dimensions (L x W x H) (In.)	60x44x88
Table Slots (In.)	.625″
Weight (Lbs.)	990
Max. Spindle Speed	245 – 2000 rpm
Min. Spindle Speed	65 – 540 rpm

2 hp motor runs on 220-volt single-phase power and handles a maximum drilling capacity of 1.5” steel and 1.75” cast iron
Auto-reversing tapping feature has a capacity of .937” with a speed range from 65 to 2000 rpm
Potentiometer dial controls the drill speed and the digital readout on the front displays the speed in rpm for easy checking
Sophisticated Delta® inverter drives #4 Morse taper spindle
Chuck with automatic tool ejector simplifies tooling changes
Large, machined 22” x 18.5” drill table offers plenty of room for material while the oversized .625” T-slots allow for secure clamping of a vise or fixture
Sturdy 4.52” column eliminates flex and boosts drilling accuracy while the cast base supports rigidity at maximum capacity
Power-down feed helps to prolong the machine’s lifetime of use while the safety guard around the spindle with a limit switch protects you and your shop
Powerful coolant system, housed in the base, keeps the drill from overheating and helps the drill last longer
Includes a bright halogen light that bends to enable you to see the material better as you work

Shipping Details

Weight	990 lbs
Dimensions	60 × 40 × 88 in
Estimated Delivery	Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing.
F.O.B. Details	ON and QC Customers: F.O.B. (London, Mississauga, ON); BC Customers: F.O.B. (Surrey, BC); AB, SK Customers: F.O.B. (Calgary, AB); East Coast of Canada: F.O.B. (London, Mississauga, ON)
Unloading Details	This product is shipped on a skid or crate. Customer is responsible for unloading this item using a forklift. Please refer to your forklift nameplate for it’s load capacity.
Shipping Method	LTL Freight
Product Type	Drill Presses (Metal)
