Specifications
| Item Number |
DP-1400VS |
| Spindle Travel |
5.9″ |
| Table Size |
18-3/4″ x 12-1/4″ |
| Quill Diameter |
2.44” |
| Spindle Nose to Table |
28-1/2″ |
| Spindle Nose to Base |
44-3/4″ |
| Spindle Speed High |
230 – 2500 rpm |
| Spindle Speed Low |
80 – 1000 rpm |
| Spindle Taper |
MT 3 |
| Table Slot |
.551″ |
| Tapping Capacity |
5/8″ |
| Table Angle Adj |
360° |
| Main Motor |
2 hp |
| Power |
220V / 1-phase |
| Shipping Weight |
710lbs |
| Special Notes |
Includes integrated table vise |
| Swing |
18″ |
| Drill Capacity |
1.25″ |
| Column Diameter |
4″ |
| Base Dimensions L x W |
7.75″ x 25.5″ |
| Shipping Dimensions (Inches) |
60x44x88 |
* specifications subject to change without notice.

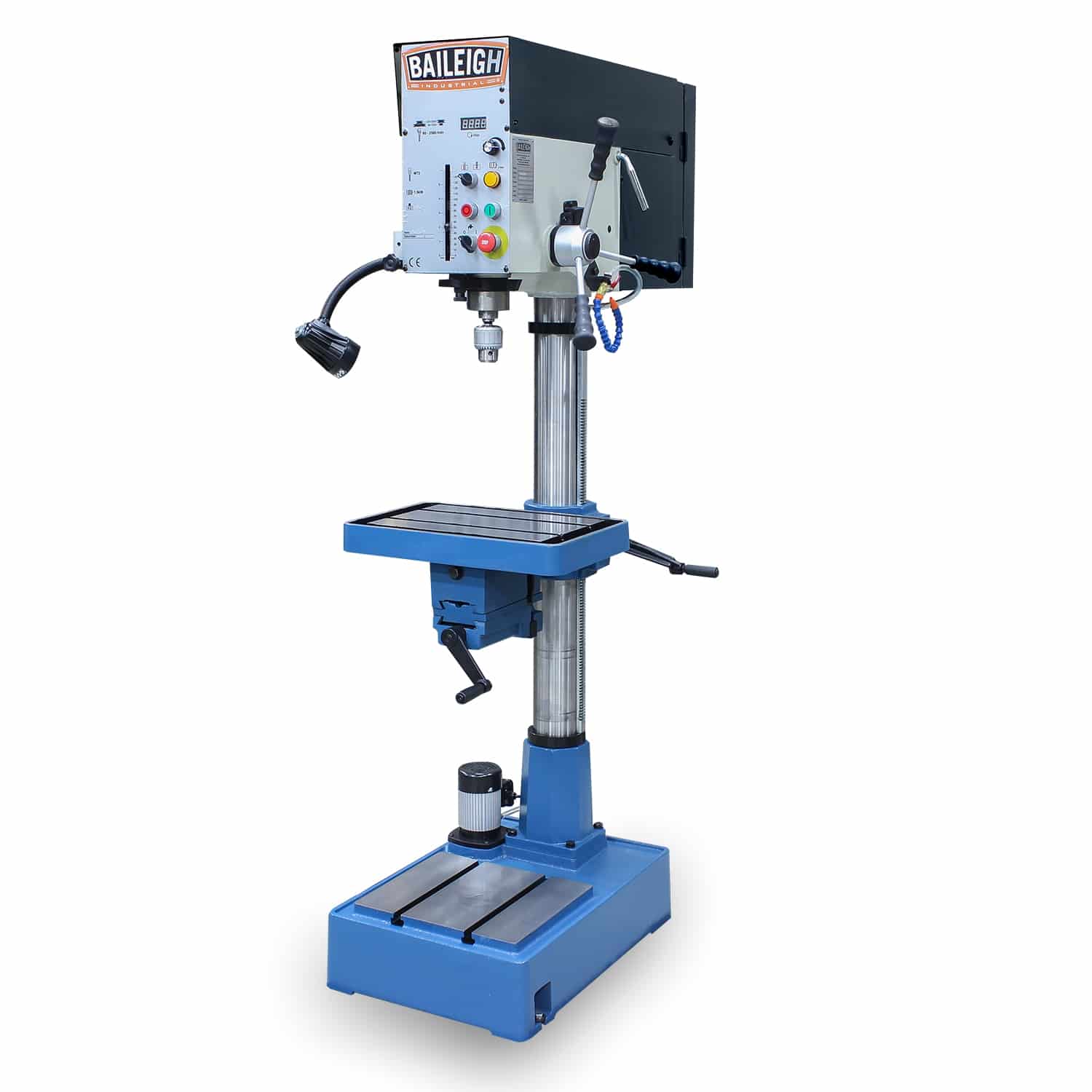

Built using the finest components, the DP-1400VS floor drill press draws strength from its sturdy base and column that won’t flinch during the heaviest drilling sessions. With a unique table that pivots 360 degrees, this variable-speed drill press will prove an ideal investment for any machinist or fabricator.
- 2 hp motor runs on just 220 volts of single-phase power.
- Tackles a maximum drilling capacity of 1.25” mild steel.
- Heavy duty spindle transfers power to the #3 Morse taper tooling .
- Speed potentiometer dial controls powerful inverter-driven head.
- Variable drilling speed, ranging from 80 to 2500 rpm, lets you choose the right setting to suit your application.
- Digital readout displays actual spindle rpm, ensuring precise results time after time.
- Features an auto-reversing tap function with up to .625” capacity.
- Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions.
- Base and 25.5″” x 17.75” table are made of a heavy iron casting to increase rigidity.
- Very large .511″ T-slots let a vise or fixture securely hold your material.
- Coolant system, stored in the base, sprays out at the end of the spindle behind the splash and safety guard to extend drill bit and tap lifespan.
- Covered by a 1-year parts warranty and lifetime technical support by phone from Baileigh’s team of experienced reps.
- Need it soon? We keep the DP-1400VS in stock for quick shipments.
