Specifications
| Item Number |
DP-1200VS |
| Swing |
20.8″ |
| Diameter of Column |
4″ |
| Distance Between Spindle Nose and Base |
1-1/4″ Min. / 23-1/2″ Max. |
| Base Size |
25-3/4″ x 16-1/2″ |
| Table Size |
16-3/4″ x 19″ |
| Quill Diameter |
3″ |
| Stroke |
6″ |
| Spindle Nose to Table |
36.41″ |
| Spindle Nose to Base |
44-1/2″ |
| Spindle Speed |
10-2,250 RPM |
| Spindle Taper |
MT3 |
| Table Slot |
.625″ |
| Tapping Capacity |
1/2″ |
| Main Motor |
2 hp |
| Drill Capacity Steel |
1-1/16″ |
| Power |
220V / 1-phase |
| Shipping Weight |
650lbs |
| Drill Capacity |
1.25″ |
| Spindle Travel |
5.9″ |
| Column Diameter |
4.52″ |
| Shipping Dimensions (Inches) |
60x44x82 |
* specifications subject to change without notice.

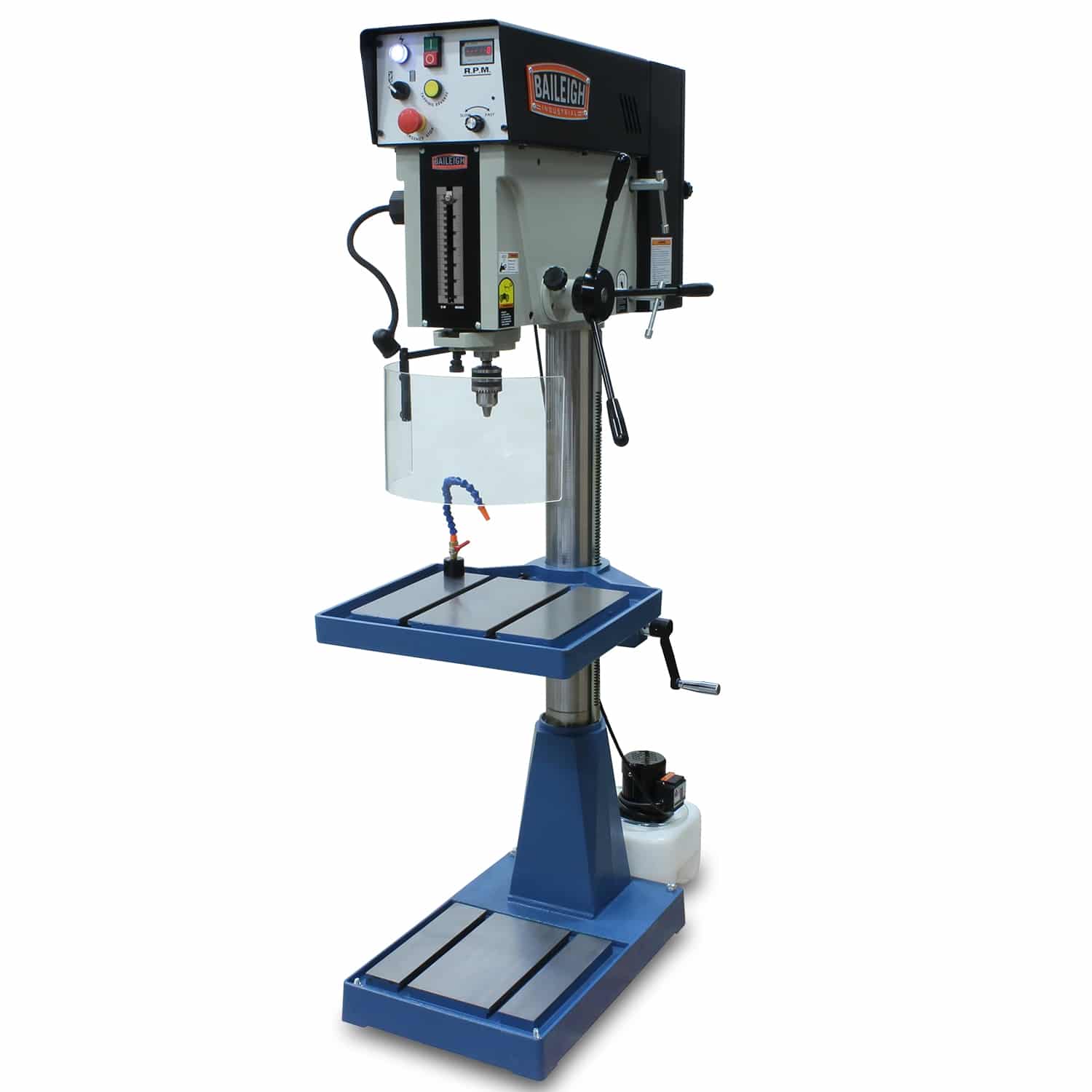

Built to last for years, the DP-1200VS floor drill press is an economical option for any shop. With a 22” swing, this variable-speed drill press will prove an ideal investment for any machinist or fabricator.
- 2 hp motor runs on just 220 volts of single-phase power.
- Tackles a maximum drilling capacity of 1-1/16” mild steel.

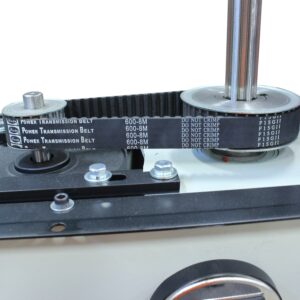

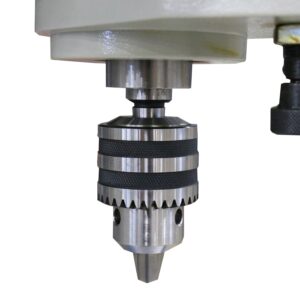

- Heavy duty spindle transfers power to the #3 Morse taper tooling .

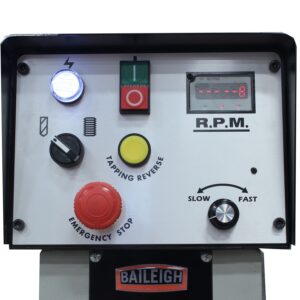

- Speed potentiometer dial controls powerful inverter-driven head.
- Variable drilling speed, ranging from 10 to 2250 rpm, lets you choose the right setting to suit your application.
- Digital readout displays actual spindle rpm, ensuring precise results time after time.
- Features an auto-reversing tap function with up to .1/2” capacity.
- Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions.

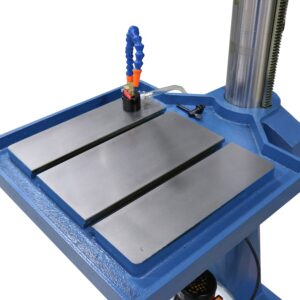

- Base and 16-3/4” x 19” table are made of a heavy iron casting to increase rigidity.
- Very large .625″ T-slots let a vise or fixture securely hold your material.

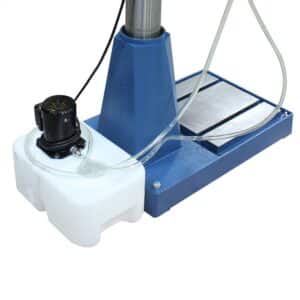

- Movable coolant system, with magnetic fixture, sprays out where you need it to extend drill bit and tap lifespan.
- Covered by a 1-year parts warranty and lifetime technical support by phone from Baileigh’s team of experienced reps.
- Need it soon? We keep the DP-1200VS in stock for quick shipments.
