Edwards 8" Brake with 4-way Die

Edwards 8″ Brake with 4-way Die

Original price was: $1,834.64.Current price is: $1,795.00. CAD Funds

Choose an option below:

Questions about this Product? We are here to help! Call us toll-free today: 1 (833) 399-5395

    Questions? Call us Toll-Free 1-(833) 399-5395

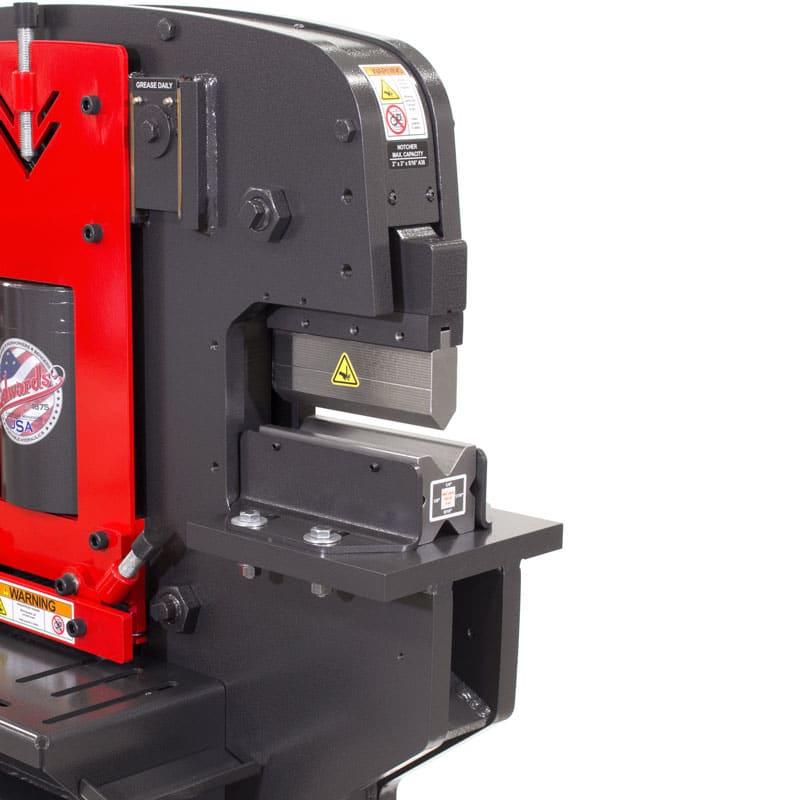

    The Edwards 8" Brake with 4-Way Die is designed for precise bending of materials like brackets, frames, and pans. It works with various Edwards Ironworkers and includes a standard punch and a four-way die that allows bending 1/16", 1/8", 3/16", and 1/4" materials to a 90° angle. The setup is easy to mount, and it supports repeatable bends with the Ironworker's electric stroke control.

    Warranty: 1 YearUPC: 731325580341 SKU: ED9-AC1034 Categories: , , Tag:

    Specifications

    • Fabricate brackets, frames, pans and tanks with this Brake with 4-Way Die
    • Includes a standard punch that allows 1/16”, 1/8”, 3/16” and 1/4” material to be formed to a 90° angle

    Precise, Repeatable Bends

    Brackets, frames, pans and tanks are just a few of the applications appropriate for the Edwards Brake Tooling. This length brake is designed to work with the 40 ton, 50 ton, 55 ton, 60 ton, 65 ton, 100 ton Deluxe, and 120 ton Ironworkers. Brake Tooling includes a standard punch and a four-way die that allows for 1/16″, 1/8″, 3/16″, and 1/4″ material to be bent to a 90° angle. The bottom brake die is held with brackets that easily bolt to the mounting table. Repeatable bending is achievable with the combination of Brake Tooling and the Ironworker’s electric stroke control.

    Shipping Details

    Weight 75 lbs
    Dimensions 24 × 24 × 24 in
    Estimated Delivery

    Usually in Stock at the factory in the US; We will confirm delivery timeline at the time of order. Allow a few extra days for order processing.
    F.O.B. Details

    F.O.B. (Edwards Manufacturing) – Freight rates are quoted on a case by case basis from Albert Lea, MN to your shop address.
    Shipping Method

    Parcel Shipping (UPS, Canada Post or Purolator)
    Unloading Details

    This package weighs less than 100 Lbs.
    Product Type

    Ironworkers
